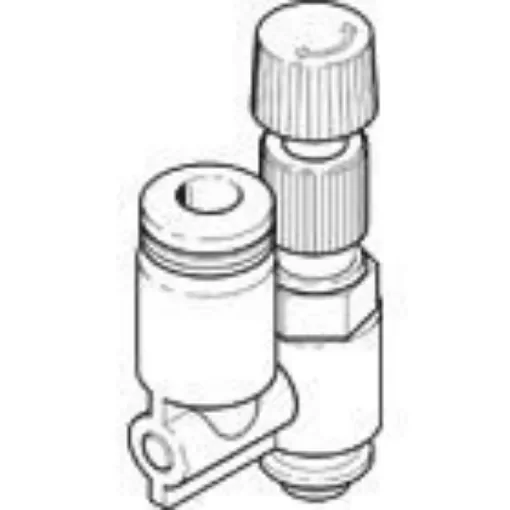

Festo LRL Series Threaded Flow Regulator, R 1/8 Inlet Port x Push In 4mm Tube Outlet Port, 153511 - LRL-1/8-QS-4

Manufacturer Series = LRL
Outlet Port Type = Tube
Minimum Outlet Pressure = 2bar
Maximum Outlet Pressure = 6bar
Threaded Inlet Thread Standard = R
Threaded Inlet Thread Size = 3.175 mm

Festo Flow RegulatorThe Festo LRL-1/8-QS-4 differential pressure regulator with R1/8 inlet port and push in 4mm tube outlet port is made of nickel plated brass. The housing is made of PBT-reinforced material. The differential pressure regulator maintains a manually adjusted differential pressure between the primary pressure at the screw-in thread and the output pressure at the QS push-in connector. Pressure applied at the QS push-in connector can be exhausted with no change in pressure at the thread connection end thanks to an integrated non-return valve.Features and Benefits• 360° assembly position • Ambient temperature ranges between 0°C and 60°C • Knurled screw with lock nut actuator lock • Nickel plated brass threaded plug • Outlet pressure ranges between 2bar and 6bar • PBT-reinforced housing • Pressure range between 2bar and 6bar • PTFE threaded seal • Push-in connector can be rotated 360° • Push-in connector for tubing outer diameter 4mm to 12mm • Screw-in thread M5, Rx, R1/4, Ry, R1/2 • Threaded and push-in connector regulator • Threaded R1/8 inlet and push-in QS-4 outlet connectionApplications• Aerospace • Air compressors • Gas stations • Medical fields • Mining industry • Pressure regulation of compressed airCertifications• ISO8573-1:2010
