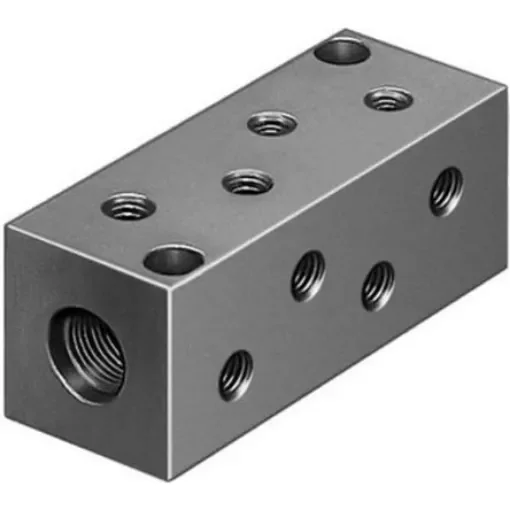

Festo FR 12 Outlet Manifold G 1/8 Female M5 Female - FR-12-M5

Number of Outlet Ports = 12
Outlet Port = M5 Female
Number of Inlet Ports = 1
Inlet Port = G 1/8 Female
Manufacturer Series = FR
Material = Anodised Aluminium
Maximum Operating Pressure = 16 bar
Outlet Port - Thread Size = M5
Maximum Operating Temperature = +60°C
Outlet Port - Gender = Female
Outlet Port - Thread Standard = Metric
Inlet Port - Thread Size = 1/8in
Inlet Port - Thread Standard = G
Inlet Port - Gender = Female
Minimum Operating Temperature = -10°C

The Festo FR series distributor block has a M5-12 outlet ports for distribution of compressed air. The maximum operating pressure is 16 bar.Nominal size - 4.1 mm Assembly position - any Operating medium - compressed air
