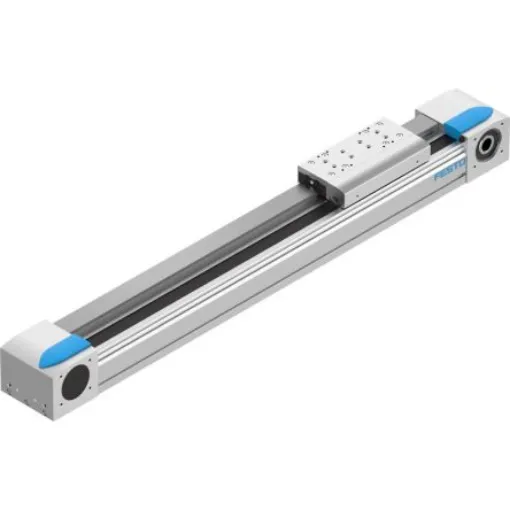

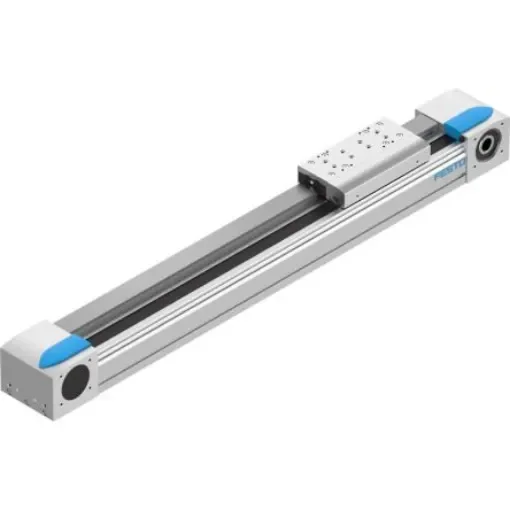

Festo Belt Driven Linear Actuator, 600mm, 5000mm/s, 3013366 - EGC-120-600-TB-KF-0H-GK
High-speed Festo belt driven linear actuator with 600mm stroke for efficient automation.
Manufacturer part number: EGC-120-600-TB-KF-0H-GK
GTIN: 4052568268237
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Belt Driven Linear Actuator
Maximum Stroke Length = 600mm
Series = EGC
Maximum Speed No Load = 5000mm/s
Maximum Force Lifting = 6890N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 3013366
The Festo EGC series toothed belt axis with recirculating ball bearing guide. The effective diameter of drive pinion is 39.79 mm.Working stroke = 1500 mm Size = 120 Toothed-belt stretch = 0.13 %
