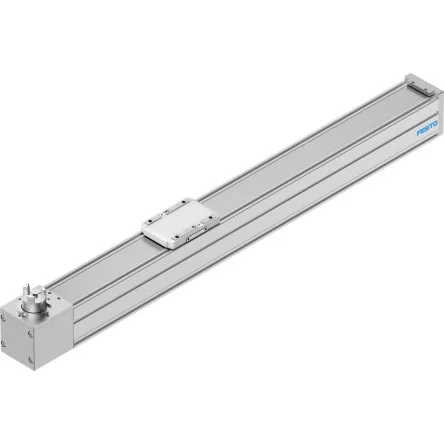

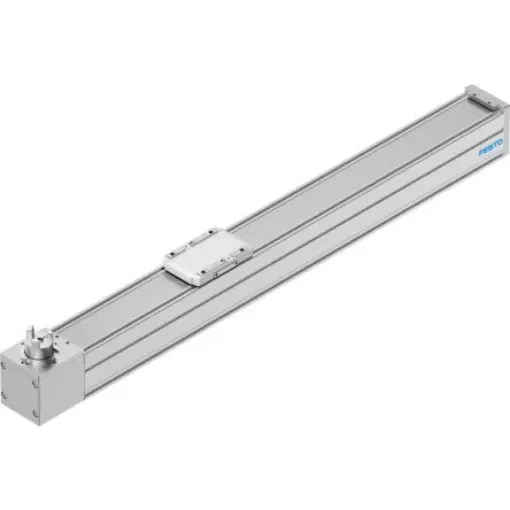

Festo Belt Driven Linear Actuator, 500mm, 1500mm/s, 8062778 - ELGC-TB-KF-60-500
Experience high-speed performance with the Festo Belt Driven Linear Actuator, ideal for dynamic applications.
Manufacturer part number: ELGC-TB-KF-60-500
GTIN: 4052568296070
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Belt Driven Linear Actuator
Maximum Stroke Length = 500mm
Series = ELGC-TB
Maximum Speed No Load = 1500mm/s
Maximum Force Lifting = 3641N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 8062778
Toothed belt axes ELGC-TB for dynamic, longer stroke applicationsCompact, light-weight design Cost effective actuators All 3 easily mount together to create 2-axis and 3-axis systems Breathing ports to apply overpressure to keep dirt out or apply vacuum to keep particulates in Toothed belt for dynamic applications Ball screw for precision applications
