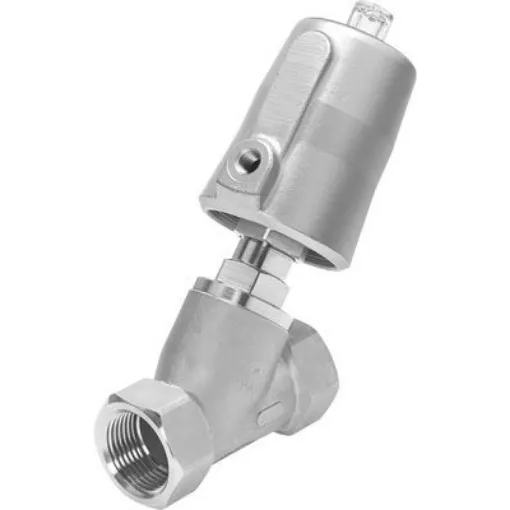

Festo Angle Seat type Pneumatic Actuated Valve, G 1-1/4in, 40 bar - VZXF-L-M22C-M-B-G114-290-H3B1-50-7
Reliable pneumatic angle seat valve for efficient flow control in various applications.
Manufacturer part number: VZXF-L-M22C-M-B-G114-290-H3B1-50-7
GTIN: 4052568226084
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Thread Size = 1-1/4in
Valve Type = Angle Seat
Default Valve Position = NC
Return Type = Spring
Thread Standard = G
Maximum Working Pressure = 40 bar
Festo Angle Seat Pneumatic Valve, G 1-1/4 In Process Valve Connection - VZXF Series - VZXF-L-M22C-M-B-G114-290-H3B1-50-7 This angle seat valve from Festo offers a reliable, low-maintenance solution for regulating the flow of liquid or compressed air in a rigid piping system. It has a sturdy construction from gunmetal (red brass) combined with polytetrafluoroethylene (PTFE) and nitrile butadiene rubber (NBR) seals to provide reliability and a long service life. With an operating temperature range of -10°C to +80°C, this is a versatile component for use across light and heavy industries. The pneumatically actuated valve stops the flow of media automatically when pressure is lost, thanks to the spring-loaded, normally closed (NC) default position. Its useful for applications in which you cant guarantee the absolute purity of the medium or where you need to regulate the flow of high-viscosity media (up to 600 mm²/s).• Nitrile butadiene rubber (NBR) spindle seal provides resistance to corrosion for a long product life • Polytetrafluoroethylene (PTFE) seat seal prevents leakage • Operating pressure of 6 bar to 10 bar for use in heavy-duty applications • Thread size of 1-1/4 in
