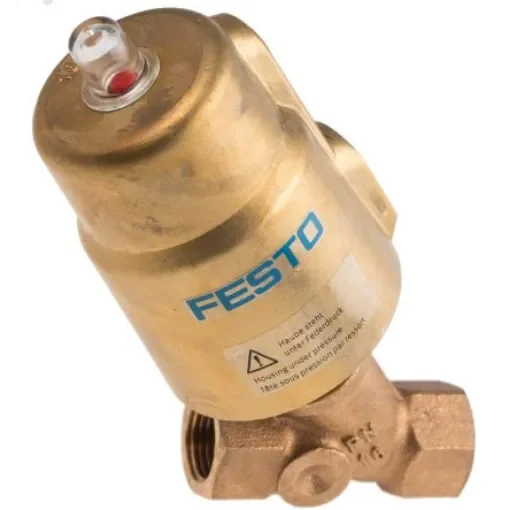

Festo Angle Seat type Pneumatic Actuated Valve, BSP 1/2in, 16 bar - VZXF-L-M22C-M-B-G12-120-H3B1-50-16

Festo Angle Seat Pneumatic Valve, 1/2 In BSP - VZXF Series - VZXF-L-M22C-M-B-G12-120-H3B1-50-16 Do you need a tube to move aggressive, dirty or viscous liquids? This Festo angle seat pneumatic valve is designed to deliver a long life of heavy use. Its a robust and versatile component thats suitable for high-pressure applications of up to 16 bar. The normally closed position and one-way flow ensure none of the media thats being moved goes back through the valve itself. This makes the product suitable for use as a safety valve. Features and Benefits • Normally closed default valve position increases safety • Maximum working pressure of 16 bar for heavy-duty applications • Spring return type for reliable operation • BSP (British Standard Pipe) thread standard for compatibility with most fittings Application Information • Assembly lines • Fabrication Can I only use the valve with liquids? No, the valve is intended for use with a wide variety of liquids and gases. It shouldnt be used with solids, chemically unstable gases or abrasive media. Can I install the valve in any direction? No, the valve must be installed in the direction in which the media will flow.
