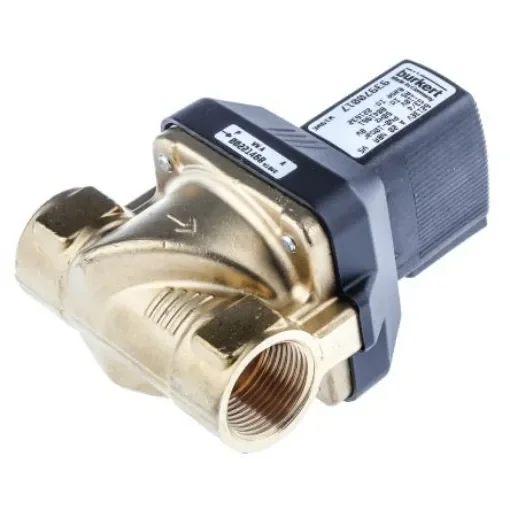

Burkert Solenoid Valve 221632, 2 port(s) , NC, 110 V ac, 3/4in
Reliable 2/2 brass solenoid valve for gas and air applications, operating at 110V AC.
Manufacturer part number: 221632
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Supply Voltage = 110 V ac
Number of Ports = 2
Connection Size = 3/4in
Connection = 3/4 in G Female
Operation = Pilot
Default Valve Position = NC
Suitable Applications = Gas, Air, Vacuum Applications
Type = 2/2
Orifice Diameter = 20mm
Series = 221
Maximum Working Pressure = 10 bar
Servo Assist = Yes
Maximum Operating Temperature = +100 °C, +120 °C, +80 °C, +90°C
Maximum Opening Time = 4s
Due to their internal complexity these valves can only be used with clean neutral media Electrical connector can be ordered separately. DS6213-EV Series 2/2 Brass Solenoid valve. Burkerts new range of 2 way normally closed solenoid valves. Manufactured from brass and designed for use with water and inert liquids and gases. A soft mechanical coupling between the main piston and pilot armature aids smooth operation and a precision engineered main body path helps ensure quiet, water hammer free operation. Suitable for a diverse range of applications including compressed air and vacuum systems, heating and refrigeration, water treatment and swimming pool technology. Compact size to aid installation when space is limited. 0-10 bar operating pressure 0.1-4 second response time Opens without differential pressure Minimum pressure differential of 0.5 bar for full opening High flow rate Sealed coil IP65 Rating
