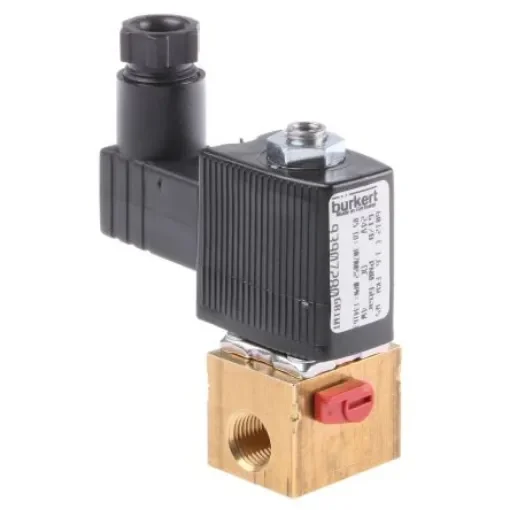

Burkert Solenoid Valve 134163, 3 port(s) , NC, 24 V dc, 1/8in

Supply Voltage = 24 V dc
Number of Ports = 3
Connection Size = 1/8in
Connection = 1/8 in G Female
Operation = Direct
Default Valve Position = NC
Suitable Applications = Gas, Liquid
Type = 3/2
Orifice Diameter = 1.6mm
Series = 6012
Maximum Working Pressure = 6 bar
Operating Temperature Range = Maximum of +55 °C
Maximum Operating Temperature = +55°C
Maximum Closing Time = 12ms

3 // 2 NF direct control, miniature solenoid valves, series 6012. Range of miniature, modular, direct control solenoid valves for neutral liquids of up to +100 °C. Function 3 // 2 NF, DL output, with exhaust when off. Able to change the solenoid without removing the valve. The solenoid can be positioned freely or locked in 4 positions at 90° intervals. High quality FPM (Viton) sealing material as standard. DIN 43 650C connector. Body made of brass.
