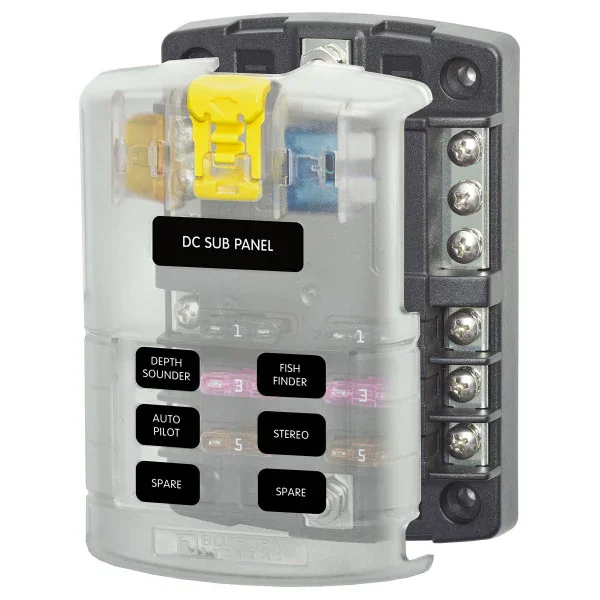

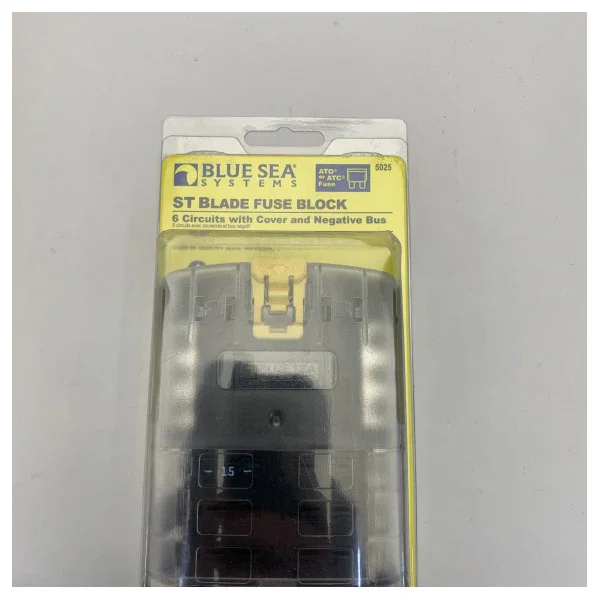

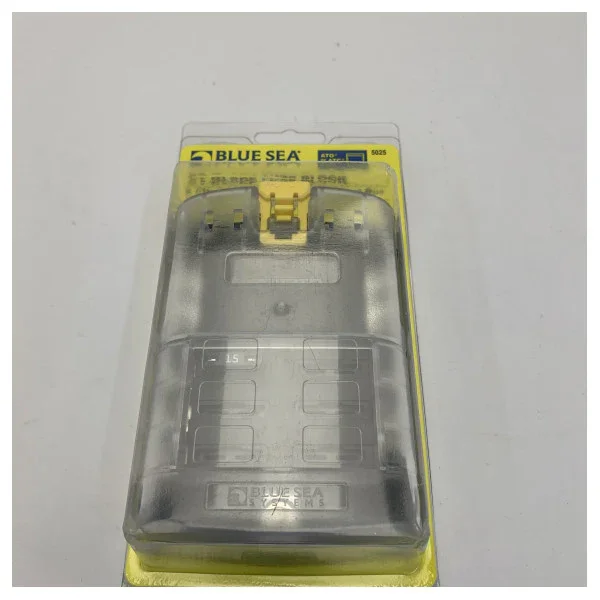

Blue Sea Systems Fuse Block ST-Blade 6 Circuits - 5025-BSS
This Blue Sea Systems Fuse Block ST-Blade with 6 circuits (model 5025-BSS) is an essential component for a safe and organized electrical installation on board your boat, camper, or other vehicle. It is specifically designed to protect your electronic equipment from overcurrent.
Key Features and Benefits
- Optimized Fuse Protection: The block uses the popular and readily available ST-Blade fuses (ATO/ATC).
- Number of Circuits: This model accommodates 6 independent circuits (positive connections) allowing you to connect multiple devices.
- Combined Negative Bus: The fuse block is equipped with an integrated common negative bus (ground bus) with six connections. This significantly simplifies wiring by providing a central connection point for the negative wires.
- Includes Cover: The included transparent insulation cover (lid) meets ABYC/USCG requirements for insulation and provides protection against splashes and dust. The cover features storage for two spare fuses.
- Easy Installation: Screw terminals make connecting power wires up to 16 AWG simple and reliable. The fuse block comes with a label set to clearly identify the connected circuits.
Specifications
The technical specifications of the Blue Sea Systems Fuse Block ST-Blade 6 Circuits (5025-BSS) are as follows:
- Model Number: 5025-BSS
- Fuse Type: ATO/ATC blade fuses
- Number of positive connections (circuits): 6
- Number of negative connections: 6
- Maximum current per circuit: 30 Amperes (A)
- Maximum total current: 100 Amperes (A) per block
- Maximum voltage: 32 Volts DC (V DC)
- Positive bus connection: M5 (number 10) stud
- Negative bus connection: M5 (number 10) stud
- Wire size for terminal connections: Suitable for 16 - 10 AWG (American Wire Gauge)
- Mounting holes: Number 8 screws (not included)
This fuse block ensures a professional and durable electrical installation, ideal for any application where reliability and safety are crucial.
