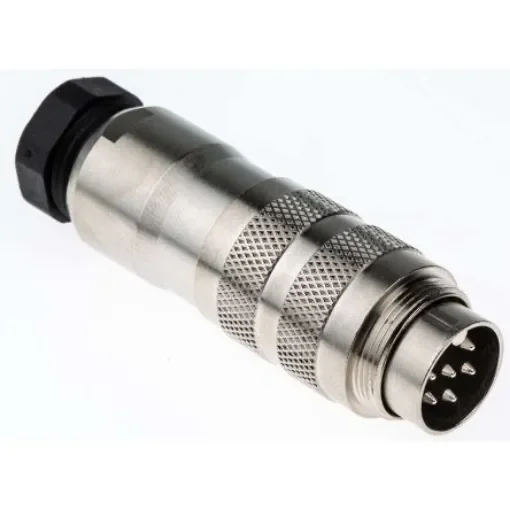

binder Circular Connector, 6 Contacts, Cable Mount, Miniature Connector, Plug, Male, IP67, 423 Series - 99.5621.15.06
Reliable binder miniature circular connector with 6 contacts and IP67 rating for robust performance.
Manufacturer part number: 99.5621.15.06
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Number of Contacts = 6
Mounting Type = Cable Mount
Connector Size = Miniature
Plug/Socket = Plug
Contact Gender = Male
Termination Method = Solder
IP Rating = IP67
Current Rating = 5.0A
Series = 423
Voltage Rating = 250.0 V
Strain Relief = Yes
Minimum Operating Temperature = -30°C
Binder Circular ConnectorThe Binder 423 series 6 DIN contacts, male miniature circular connector has socket type connection. This cable mount connector has a voltage rating of 250V and a current rating of up to 5A per contact. This connector is made of polybutylene terephthalate (PBT) with nickel-plated brass and gold-plated brass contacts. It supports a screw connector locking mechanism for sturdy mating attenuation and reliable contact.Features and BenefitsStraight body orientation Solder termination Durability is greater than 500 mating cycles Can be shielded Shielding ring Excellent EMC characteristics Internal strain relief Wire gauge is 20AWG Cable outlet ranges between 6mm and 8mm Operating temperature ranges between -40°C and 85°C Robust metal plug connector with a screw lock to IEC 130-9ApplicationsProcess control Industrial automation and instrumentation Commercial electronicsCertificationsIP67 rated UL approved
