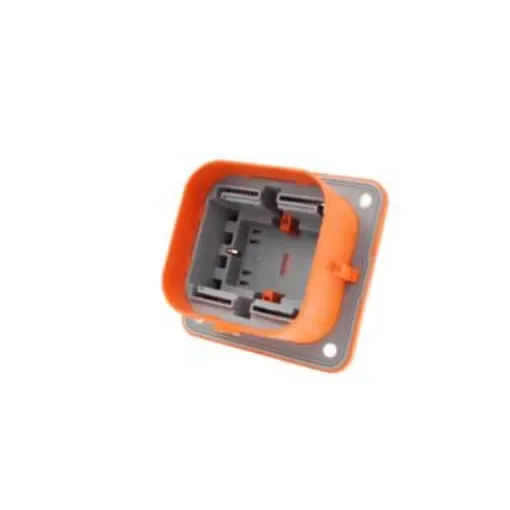

Amphenol Industrial 2 Stage Lever EV Service Disconnect For Use With HV Battery Pack - MSDF000F
Ensure safe and reliable high voltage battery disconnection with this durable Amphenol service disconnect.
Manufacturer part number: MSDF000F
Current Rating = 230A
For Use With = HV Battery Pack
IP Rating = IP67, IP69K
Maximum Operating Temperature = +70°C
Minimum Operating Temperature = -40°C
Series = MSD
Standards Met = LV215, USCAR2, USCAR37
Latching Type = 2 Stage Lever
Mounting Type = Flange Mount
Height = 110mm
Width = 110mm
Better World Product = Yesmm
Termination Method = Plug InV
MSD Receptacle with HVIL. From Amphenol, this Manual Service Disconnect (MSD) is for use in charging Plug In Hybrid Electric Vehicles (PHEV) and features a High Voltage Interlock Loop (HVIL). The MSD presents a disconnect for internal high voltage battery packs without the need for specialist tools, while protecting the battery from short circuit. With a high degree of ingress protection, this MSD receptacle offers a safe and reliable solution for PHEV servicing. Features and Benefits:. Durability of over 50 mating cycles Mates to IP67, IP6K9K Operating Temperature of -40°C to 70°C Standards: USCAR-2. USCAER-37, LV-215
