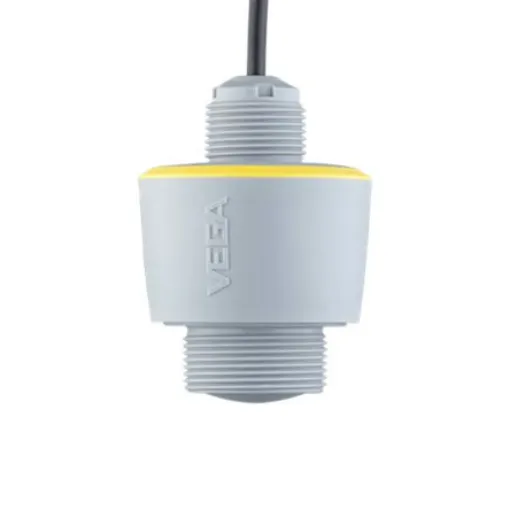

Vega VEGAPULS C21 Series Radar Level Sensor, 4-20mA Output, 1.5" G/BSP Thread, PVDF Body - RA - 222 22H
Achieve precise non-contact level measurement with the Vega VEGAPULS C21 Radar Level Sensor.
Manufacturer part number: RA - 222 22H
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Radar
Mounting Type = 1.5" G/BSP Thread
Switch Output = 4-20mA
Body Material = PVDF
Cable Length = 5m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +80°C
Maximum DC Voltage = 35V
Maximum Current = 20 mA
Maximum Pressure = 3bar
Gasket Material = FKM
Measurement Range = 15 m
For Use With = Liquids/solids
Interface = Bluetooth
The Vegas VEGAPULS C 21 is the ideal radar sensor for non-contact level measurement with high accuracy requirement in all standard application where a high degree of protection is required. The sensor is suitable both for measuring liquid and for use on small bulk solids silos or bulk solids container.Maintenance-free operation due to non-contact 80 GHz radar technology Ambient temperature -40 to +80 °C
