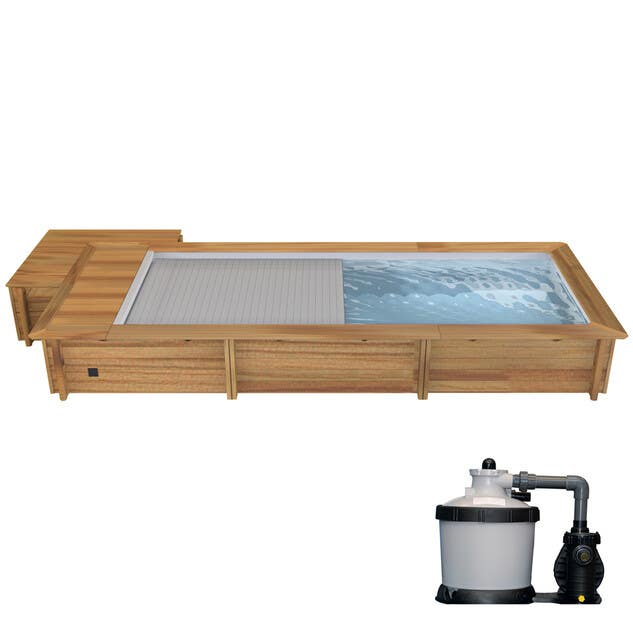

Urban Rectangular Wooden Pool 600 x 250 x H133 cm - Automatic Cover and Sand Filtration
This kit pool combines ease of installation with the quality of high-end pools!
The Urban wooden pool offers a complete solution that allows you to install your pool directly:
- Water surface area of less than 10m², so no administrative steps required
- An assembly within the reach of any good DIY enthusiast
- Free direct home delivery
- A quality sand filter
Key Features
The water surface area of this pool is 9.99m², so it will not be necessary to go through the usual procedures for a pool. Indeed, according to article R421-9, it is necessary to obtain prior authorisation for any pools with a surface area between 10m² and 100m².
This kit includes the wooden structure, hydraulic connections (ø32mm), an integrated cover, sand filtration, and a wooden box for the filtration system.
The wooden structure is made of Northern Pine, treated in autoclave class IV, sourced from sustainably managed PEFC certified forests and comes with a 10-year guarantee. The coping stones are made of class 3 spruce, which offers more resistance to climatic variations than pine. Metal braces will reinforce the entire structure along the length and width.
The 4m³/h sand filtration system is made from ABS injection with a self-priming pre-filter pump. It comes with a rigid connection kit for pump/filter, a 6-way valve, and a filter charge.
Technical Specifications
| Kit pool | To be assembled by yourself (liner and integrated cover more delicate) |
| Structure type | Northern pine wood |
| Treatment | autoclave class IV |
| Beams | 45mm |
| Structure reinforcement | Steel braces |
| External dimensions | 600x250x133 cm |
| Internal dimensions | 499x200 cm |
| Height | with coping 133 cm |
| Coping stones | Class 3 spruce |
| Coping dimensions | two coping stones: 28x290mm |
| Installation | semi-buried (min 1m) - buried - above ground |
| Assembly time | 4 days for two people |
| Concrete slab | Recommended - 15cm thick |
| Pool | Compliant with standard NF 90 316 |
| Water volume | 13.42m³ |
| Filtration type | Sand filter |
| Filtration flow rate | 4m³/h |
| Liner thickness | 75/100 light grey |
| Skimmer kit | P-PM skimmer (flow rate at the nozzle 4m³/h) |
| Light | 1x LED |
| External ladder | Wood 4 steps |
| Internal ladder | ABS/Aluminium 3 steps |
Transport
Your entire pool will be delivered on a pallet for limited bulk before installation, but also for easier storage if you wish to store your pool during the winter or in case you move.
Pallet of 250x110cm and 120cm height for the structure: 1160kg
Pallet of 180x100cm and 45cm height for the box: 180kg
Pallet of 120x50cm and 90cm height for the filtration: 60kg
Warranty
- A 10-year warranty on the structure and sealing parts
- A 5-year warranty on the roller shutter
- A 2-year warranty on the liner, ladder, and filtration.
Note:- Parts warranty only, excluding labour and travel
- Costs for removal, reinstallation, labour, excavation, draining, filling, and treatment products are excluded from the warranty.
