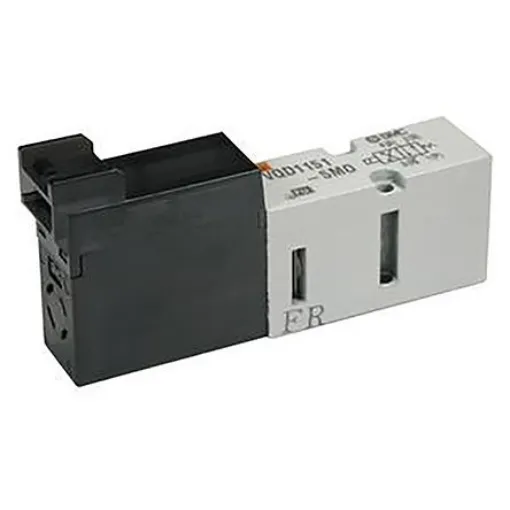

SMC Pneumatic Solenoid Valve - M5 x 0.8 VQD Series 24V dc - VQD1151-5MO-Q

SMC VQD1000 Series. VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labour. Fluid: air/inert gas Operating pressure range: 0.1MPa - 0.7MPa (high pressure style 0.8MPa) Effective area mm 2 (Cv): metal seal 3.6 (0.2); rubber seal 5.4 (0.3) Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC Response time (ms) standard 1W, H 1.5W: 2 position metal seal 12 or less; 2 position rubber seal 15 or less 3 position metal seal 20 or less; 3 position rubber seal 25 or less Ambient fluid temperature: -0 to 50C
