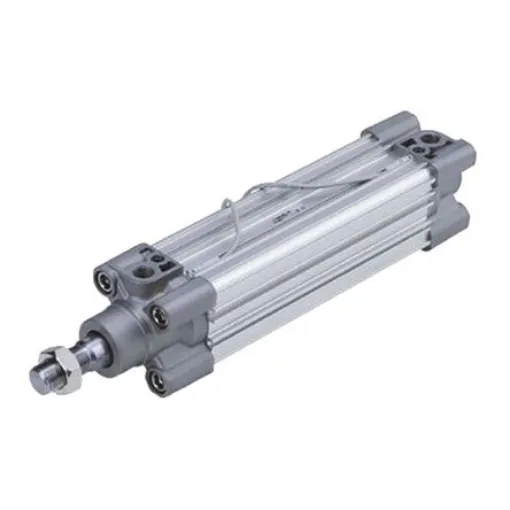

SMC Pneumatic Piston Rod Cylinder - 63mm Bore, 50mm Stroke, CP96 Series, Double Acting - CP96SDB63-50C

Manufacturer: SMC

High-performance SMC pneumatic cylinder with double acting functionality and compact design.

Manufacturer part number: CP96SDB63-50C

Vendor: YACHTNEEDS-RS

Availability: Out of stock

€174.50

Qty:

i h

Only Ships to: France, Monaco

For shipping outside these regions, please contact customer support.

Manufacturer Series = CP96
Action = Doublemm
Port Connection = G 3/8
Dimensions = 244 x 77 x 77mm
Height = 77mm
Maximum Operating Pressure = 1 MPaMPa
ISO Standard = 4414
Stroke Interval Weight = 0.32 kg @ 50 mm Stroke

CP96-C Double Acting Cylinder. The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body.
