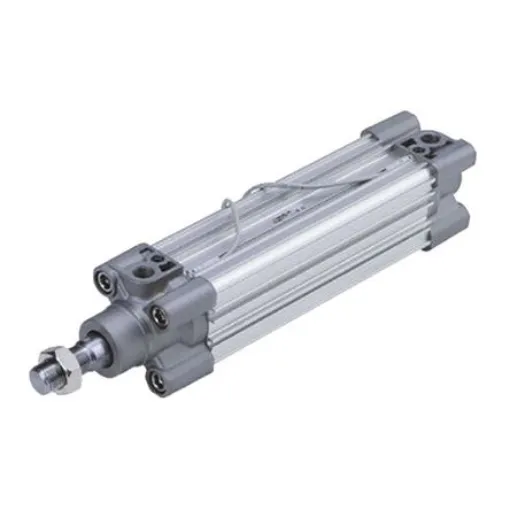

SMC Pneumatic Piston Rod Cylinder - 50mm Bore, 300mm Stroke, CP96 Series, Double Acting - CP96SDB50-300C
Efficient double-acting pneumatic cylinder with 50mm bore and 300mm stroke for reliable performance.
Manufacturer part number: CP96SDB50-300C
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Manufacturer Series = CP96
Action = Doublemm
Port Connection = G 1/4
Cushioning Type = Air
Dimensions = 479 x 66 x 66mm
Length = 479mm
Maximum Operating Pressure = 1 MPaMPa
ISO Standard = 4414
Minimum Operating Temperature = -20°C
CP96-C Double Acting Cylinder. The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body.
