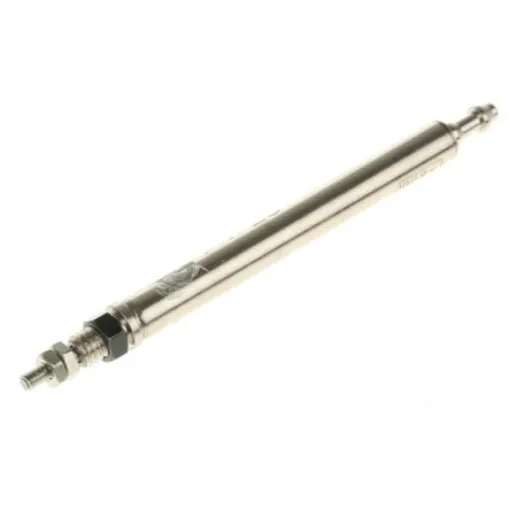

SMC Pneumatic Piston Rod Cylinder - 4mm Bore, 20mm Stroke, CJ1 Series, Single Acting - CJ1B4-20SU4
Compact SMC pneumatic cylinder designed for precision automation with a 4mm bore and 20mm stroke.
Manufacturer part number: CJ1B4-20SU4
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Outward Thrust and Return Thrust or Pull are calculated at maximum operating pressure (7 bar). Pneumatic Needle Cylinders. Designed to automate delicate operations Plug directly into 4mm OD x 2.5mm ID tubing, available separately Single acting - spring retracting Non-lubricated. Test pressure10.5 Bar Operating pressure 3 bar (min) to 7 bar (max) Ambient and fluid temperature -10°C to +70°C Piston speed 50-500mm/sec Non-cushioned Stroke tolerance +0.5mm -0mm
