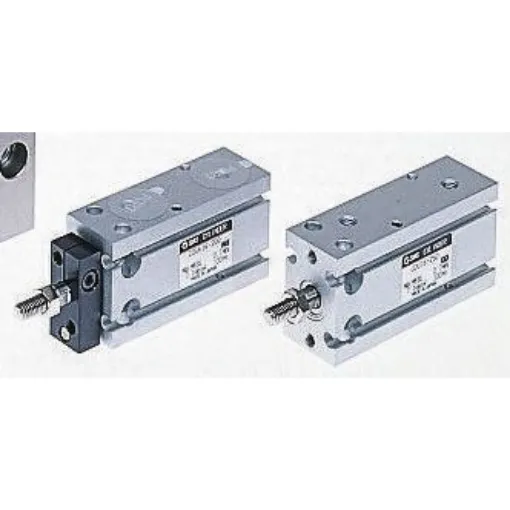

SMC Pneumatic Piston Rod Cylinder - 32mm Bore, 50mm Stroke, CUK Series, Double Acting - CDUK32-50D
Compact and efficient SMC pneumatic cylinder with 32mm bore and 50mm stroke for precise applications.
Manufacturer part number: CDUK32-50D
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
CU Series Cylinders. The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard. Maximum operating pressure 7 bar, 10.5 bar proof pressure Ambient and fluid temperature 5°C to 60°C Lubrication not required Rubber cushion to both sides Stroke allowance +1.0mm Port size M5, except 32Ø which is Rc(PT) 1//8 in.
