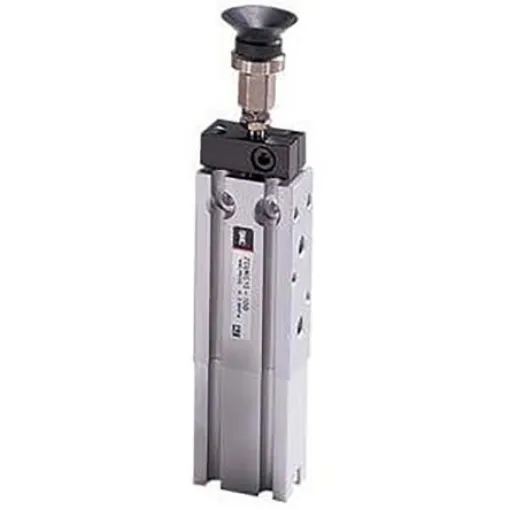

SMC Pneumatic Piston Rod Cylinder - 32mm Bore, 25mm Stroke, ZCUK Series, Double Acting - ZCDUKC32-25D
High-performance SMC pneumatic cylinder designed for vacuum applications with a 32mm bore and 25mm stroke.
Manufacturer part number: ZCDUKC32-25D
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Manufacturer Series = ZCUK
Stroke = 25mm
Port Connection = Rc 1/8
Cushioning Type = Rubber Bumper
Dimensions = 141 x 40 x 62mm
Width = 40mm
Absolute Maximum Pressure = 1.05MPa
Minimum Operating Temperature = -10°C
The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side. Series ZCUK is available in 5 bore diameters.
