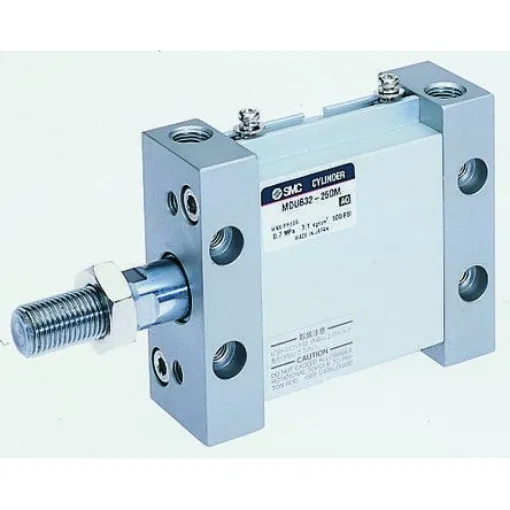

SMC Pneumatic Piston Rod Cylinder - 32mm Bore, 25mm Stroke, MU Series, Double Acting - MDUB32-25DMZ
Compact double-acting pneumatic cylinder with a 32mm bore and 25mm stroke for efficient operation.
Manufacturer part number: MDUB32-25DMZ
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Cylinders. Double-acting, single rod plate cylinders which use special piston design to save installation space and can be mounted directly from all faces (except port face). The piston is non-rotating with a built-in magnet for auto-switch sensing. Working pressure range 0.51 bar (min) to 7.1 bar (max) Proof pressure 10.7 bar Temperature range –10°C to +60°C Non-rotating accuracy ±1° (25mm dia), ±0.8° (32mm dia) Lubrication not required Rubber cushion Mounting bracket available separately
