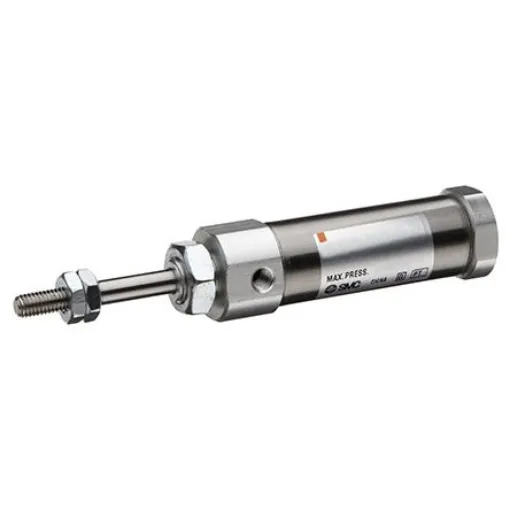

SMC Pneumatic Piston Rod Cylinder - 3/8in Bore, 1in Stroke, NCJ2 Series, Double Acting - NCDJ2D10-100-B
Compact and lightweight SMC pneumatic cylinder with 3/8in bore and 1in stroke for high accuracy.
Manufacturer part number: NCDJ2D10-100-B
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Manufacturer Series = NCJ2
Bore = 3/8in
Port Connection = 10-32 UNF
Cushioning Type = Rubber
Dimensions = 3.91 x 0.47 x 0.47in
Width = 11.94mm
Absolute Maximum Pressure = 1MPa
Minimum Operating Temperature = -10°C
SMC NCJ2 Series. SMC NCJ2 series of miniature cylinders offer a stainless steel body and stainless steel rods. They are a compact and lightweight highly accurate pneumatic cylinder. Available in bore sizes 6, 10, 16 mm, and a wide range of stroke lengths. Other features include non-rotating piston, rubber bumpers and an auto switch capability. Double Acting Compact and Lightweight Auto Switch Sensing Optional Non Rotating Piston Rod Optional High Accuracy Mounting
