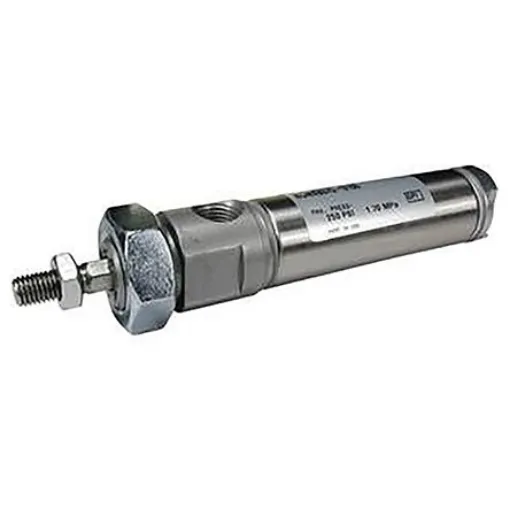

SMC Pneumatic Piston Rod Cylinder - 3/4in Bore, 4in Stroke, Single Acting - NCMKB075-0400S
Reliable SMC pneumatic cylinder with 3/4in bore and 4in stroke for efficient operation.
Manufacturer part number: NCMKB075-0400S
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Bore = 3/4in
Port Connection = NPT 1/8
Cushioning Type = Not Cushioned
Dimensions = 183.39 x 21.84mm
Diameter = 21.84mm
Maximum Operating Pressure = 1.7 MPa
Minimum Operating Temperature = +5°C
NCM Series Air Cylinders. The NCM series of air cylinders from SMC feature a chrome plated carbon steel rod which improves corrosion resistance, The piston is crimped to the rod to achieve tighter clearances and reduces piston rod deflection. Features: Available with a range of different Bore sizes Wide variety of mounting options available
