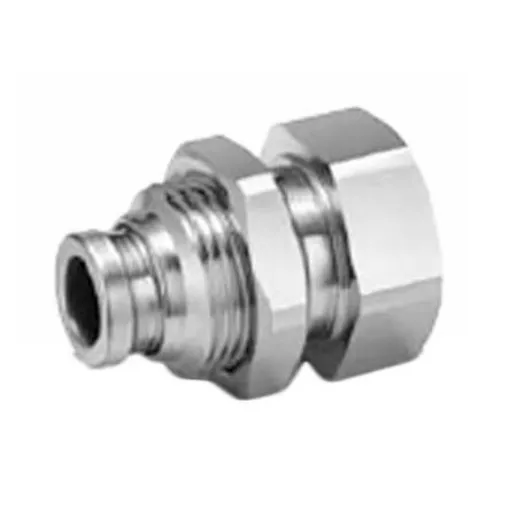

SMC Bulkhead Threaded-to-Tube Adaptor, R 1/8 Female to Push In 6 mm, Threaded-to-Tube Connection Style - KQG2E06-01
High-performance bulkhead adaptor for reliable pneumatic connections.
Manufacturer part number: KQG2E06-01
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Connector A = R 1/8 Female
Connector B = Push In 6 mm
Pneumatic Fitting Type = Bulkhead Threaded-to-Tube Adaptor
Connection Style = Threaded-to-Tube
Body Material = Stainless Steel°C
Standards Met = IEC, ISO, RoHS Compliant
Bulkhead Connector - KQG2 Series. SMC ‘s KQG2 stainless steel range provides engineers with a choice of high performance, lightweight, compact push in fittings for when resistance to corrosion, chemicals and high temperatures is vital. 30% smaller and 62% lighter than the existing KQG range and available to tubing diameters from 3.2 to 16mm. Suitable for use with compressed air, water, steam and able to perform across a diverse range of pressure (-100kPa to 1MPa) and temperature conditions (-5°C to +150°C).
