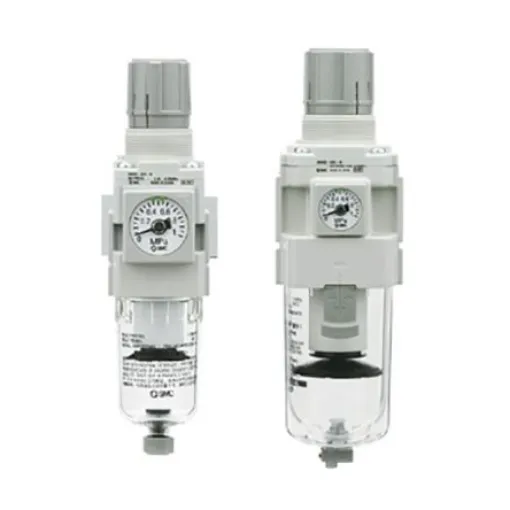

SMC AW20 Filter Regulator, 5µm, G 1/8, Automatic, 10 bar - AW20-F01C-B
Compact SMC AW20 Filter Regulator with 5µm filtration and automatic drainage for optimal air preparation.
Manufacturer part number: AW20-F01C-B
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/8
Maximum Operating Pressure = 10 bar
Manufacturer Series = AW20
Drain Type = Automatic
Filtration Size = 5µm
Port Connection Thread Size = 1/8 in
Maximum Ambient Operating Temperature = +60°C
Minimum Process Operating Temperature = -5°C
Minimum Operating Pressure = 0.1MPa
Bowl Material = Polycarbonate°C
Modular Filter Regulator AW10-B - AW40-B. SMC ‘s AW-B series of compact filter regulators combine a filter and regulator into one unit saving on space a piping. Part of SMC ‘s modular air prep range the AW-B can be combined with other components such as a lubricator, soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulators are available in a selection of body sizes from 10 to 40 with piping from G1/8 to G1/2 (also available as M5x0.8). Various options are available including normally open or normally closed autodrain function, round or square pressure gauges and panel mounting kits.
