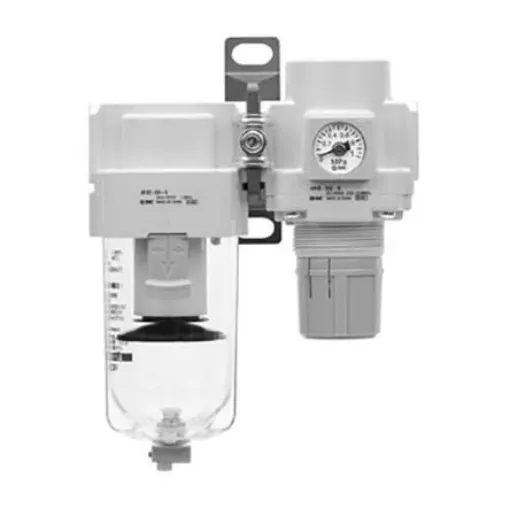

SMC AC40 Filter Regulator, 5µm, G 1/2, Automatic, 10 bar - AC40B-F04DG-B
Ensure optimal air quality with the SMC AC40 Filter Regulator featuring 5µm filtration and automatic drainage.
Manufacturer part number: AC40B-F04DG-B
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/2
Maximum Operating Pressure = 10 bar
Manufacturer Series = AC40
Drain Type = Automatic
Filtration Size = 5µm
Pressure Gauge Port = G 1/8
Pressure Gauge Port Thread Size = 1/8 in
Port Connection Thread Size = 1/2
Maximum Ambient Operating Temperature = +60°C
Minimum Process Operating Temperature = -5°C
Minimum Ambient Operating Temperature = -5°C
Filter/ Regulator Combination AC-B Series. Part of SMC ‘s modular air preparation range the AC-B can be combined with other components such as a lubricator, soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. Transparent Bowl means condensate level can be viewed from any angle. Resin body will not rust One piece bowl and element for easier element replacement Improved pressure drop over previous series Transparent bowl guard Different pressure settings available to meet different application needs Modular design
