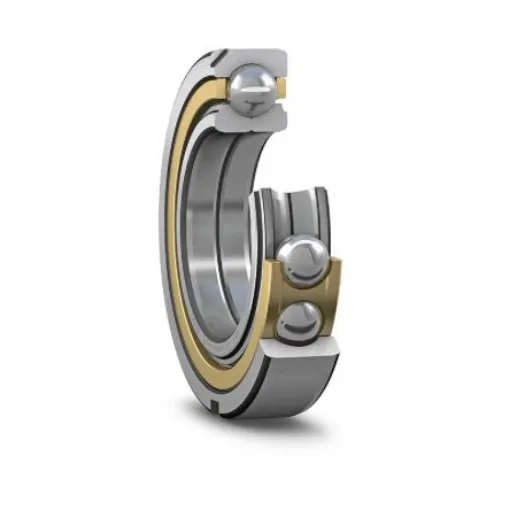

SKF QJ 319 N2MA Single Row Angular Contact Ball Bearing- Open Type 95mm I.D, 200mm O.D

Inside Diameter = 95mm
Outside Diameter = 200mm
Race Width = 45mm
Ball Bearing Type = Single Row Angular Contact Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Machined Metal
Number of Rows = 1
Static Load Rating = 340kN
Dynamic Load Rating = 305kN
Bore Type = Parallel
Partial Bearing Code = QJ 319 N2MA

The SKF Angular contact ball bearing has 95mm inner and 200mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Single row design Cylindrical bore type Steel bearing
