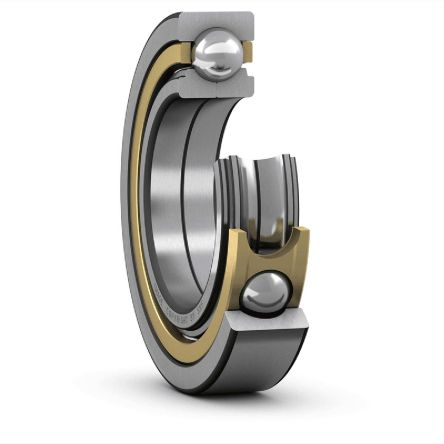

SKF QJ 309 MA Single Row Angular Contact Ball Bearing- Open Type 45mm I.D, 100mm O.D

The SKF Angular contact ball bearing has 45mm inner and 100mm outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Single row design Cylindrical bore type Steel bearing
