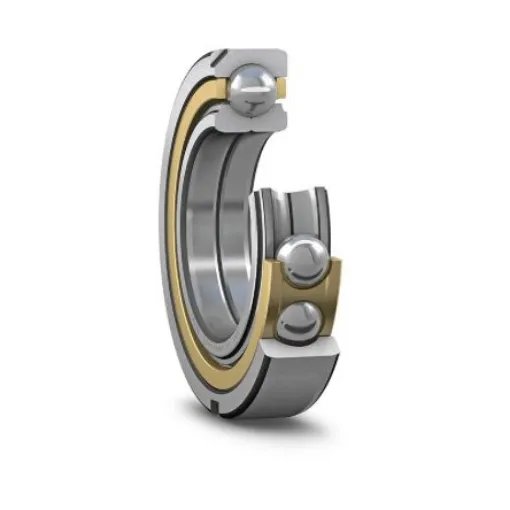

SKF QJ 228 N2MA Single Row Angular Contact Ball Bearing- Open Type 140mm I.D, 250mm O.D

SKF Machined Brass Cage Angular Contact Ball Bearing - QJ 228 N2MA Did you know that angular contact ball bearings are a type of radial ball bearing that can accommodate combined axial loads and radial loads? This comes in very handy for pumps, motors and machine handling applications. SKFs QJ 228 N2MA bearing features two locating notches in one outer ring, it has a bore diameter of 140 mm, an outside diameter of 250 mm and a width of 42 mm. Features & Benefits • Angular contact ball bearings feature raceways on their inner and outer rings races. These rings are offset to one another • Angular contact ball bearings can only accept thrust loads in one direction • Outer ring centred • Features a basic dynamic load rating of 345 kN and a basic static load rating of 475 kN whilst the fatigue load limit is 14.3 kN • Popular bearing type among the ball bearings offered to you from SKF How does an Angular Contact Ball Bearing work? The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis
