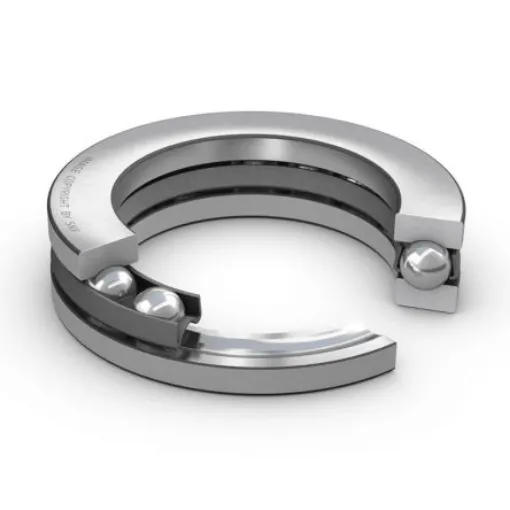

SKF 51228 Thrust Ball Bearing- Open Type 140mm I.D, 200mm O.D
SKF thrust ball bearing provides high axial load capacity and durability for demanding applications.
Manufacturer part number: 51228
GTIN: 7316577612113
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 140mm
Outside Diameter = 200mm
Race Width = 46mm
Ball Bearing Type = Thrust Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Sheet Metal
Number of Rows = 1
Static Load Rating = 630kN
Dynamic Load Rating = 208kN
Bore Type = Parallel
Bearing Series = 1 Extra Light Thrust
Partial Bearing Code = 51228
SKF Thrust Ball Bearing, 140 mm ID, 200 mm OD - 51228 This thrust ball bearing from SKF is able to provide a high load-carrying capacity for axial thrust in one direction. Its suitable for use where theres no radial load to accommodate and will prevent the shaft from drifting in the axial direction. It effectively transfers thrust loads applied onto the shaft. The bearing is made of steel and meets both British and EU electrostatic discharge standards, meaning it wont cause damage to equipment through electrostatic discharge. Thrust bearings of this kind, which work in a single direction, are commonly used in demanding automotive, marine and aerospace applications.• Open end type • Thrust design to sustain high axial loads • Inside diameter of 140 mm • Outside diameter of 200 mm • Race width of 46 mm Application Information • Agricultural equipment • Gearboxes and clutches • Chemical industries What are SKF thrust bearings made of? SKF thrust bearings are manufactured using specialist bearing steel. This ensures the units are reliable, durable and operate with minimal friction, so they offer a long service life with minimal need for maintenance.
