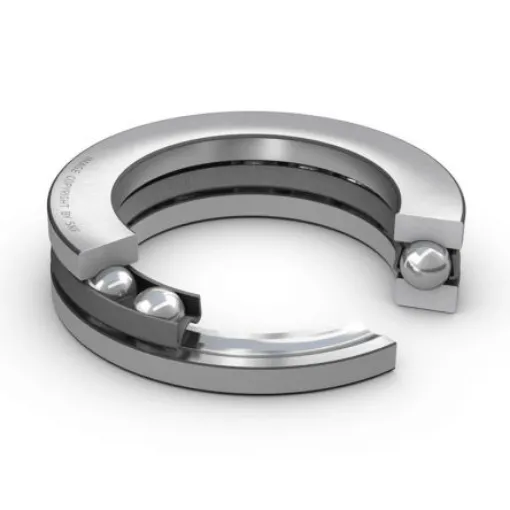

SKF 51220 Thrust Ball Bearing- Open Type 100mm I.D, 150mm O.D
High-performance SKF thrust ball bearing for efficient axial load support.
Manufacturer part number: 51220
GTIN: 7316577006837
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 100mm
Outside Diameter = 150mm
Race Width = 38mm
Ball Bearing Type = Thrust Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Sheet Metal
Number of Rows = 1
Static Load Rating = 325kN
Dynamic Load Rating = 119kN
Bore Type = Parallel
Bearing Series = 1 Extra Light Thrust
Partial Bearing Code = 51220
The SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. It has 100 mm ID and 150 mm OD.Bearing material is of bearing steel Cylindrical bore type
