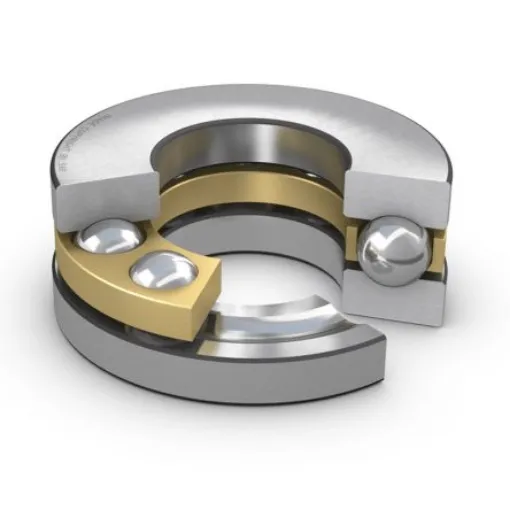

SKF 51148 M Thrust Ball Bearing- Open Type 240mm I.D, 300mm O.D
High-performance SKF thrust ball bearing designed for axial loads with a 240mm bore diameter.
Manufacturer part number: 51148 M
GTIN: 7316572051993
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 240mm
Outside Diameter = 300mm
Race Width = 45mm
Ball Bearing Type = Thrust Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Machined Metal
Number of Rows = 1
Static Load Rating = 1040kN
Dynamic Load Rating = 234kN
Bore Type = Parallel
Bearing Series = 1 Extra Light Thrust
Partial Bearing Code = 51148
SKF thrust Ball Bearing - 51148 M This popular choice of ball bearing is one of the most commonly used, but has been designed to accommodate axial loads only, this thrust ball bearing must not be subjected to any radial loads. Features & Benefits • Single direction • 240 mm bore diameter, 300 mm outside diameter and a height of 45 mm • This thrust ball bearing has a basic dynamic load rating on 234 kN, a basic load rating of 1040 kN and a fatigue load limit of 23.6 kN • Features a mass bearing (including seat washer where applicable) of 7.55 kg Typical Applications • Gearboxes • Clutches • Piercing Mills • Material handling • Agriculture How does a thrust ball bearing work? Thrust ball bearings contain balls between two races. These balls, like traditional ball bearings, are used as the rolling element within the bearing and allow the bearing to rotate at high speeds. Within the bearing there is also an aligning seat. This seat helps to align the balls within the bearing and to help with any initial misalignment.
