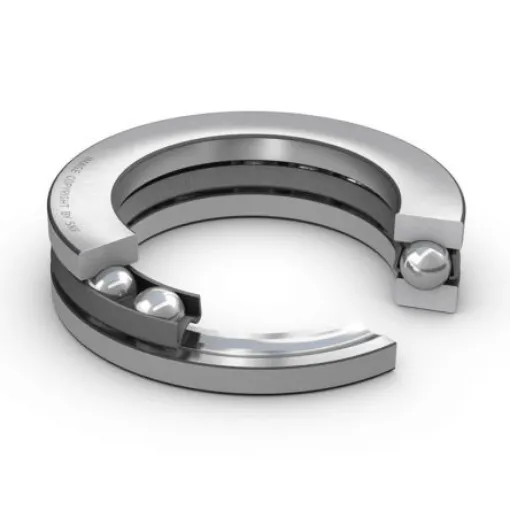

SKF 51120 Thrust Ball Bearing- Open Type 100mm I.D, 135mm O.D
High-performance SKF thrust ball bearing designed for axial loads with a 100mm inner diameter.
Manufacturer part number: 51120
GTIN: 7316577006554
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 100mm
Outside Diameter = 135mm
Race Width = 25mm
Ball Bearing Type = Thrust Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Sheet Metal
Number of Rows = 1
Static Load Rating = 265kN
Dynamic Load Rating = 80.6kN
Bore Type = Parallel
Bearing Series = 1 Extra Light Thrust
Partial Bearing Code = 51120
The SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. It has 100 mm ID and 135 mm OD.Bearing material is of bearing steel Cylindrical bore type
