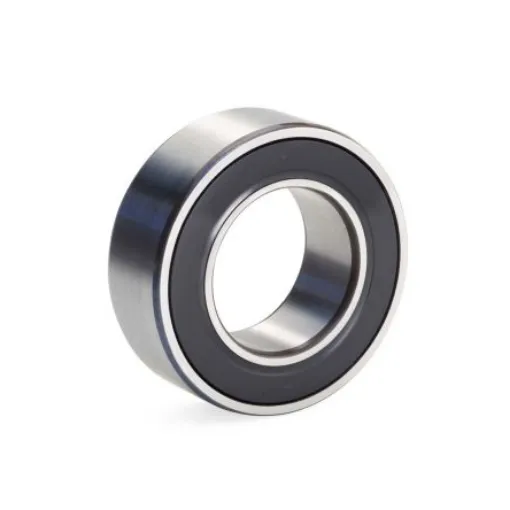

SKF 3208 A-2RS1TN9/C3MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 40mm I.D, 80mm O.D
High-performance double row angular contact ball bearing with both sides sealed for enhanced durability.
Manufacturer part number: 3208 A-2RS1TN9/C3MT33
GTIN: 7316570779301
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 40mm
Outside Diameter = 80mm
Race Width = 30.2mm
Ball Bearing Type = Double Row Angular Contact Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = C3
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 36.5kN
Dynamic Load Rating = 48kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 3208
Double row angular contact ball bearings The design of SKF double row angular contact ball bearings corresponds to two single row angular contact ball bearings arranged back-to-back. Features and benefits - Less axial space. Can be used for applications where two single row angular contact ball bearings arranged back-to-back take up too much axial space. - Accommodates radial as well as axial loads in either direction. - Accommodates tilting moments. - Stiff bearing arrangement.
