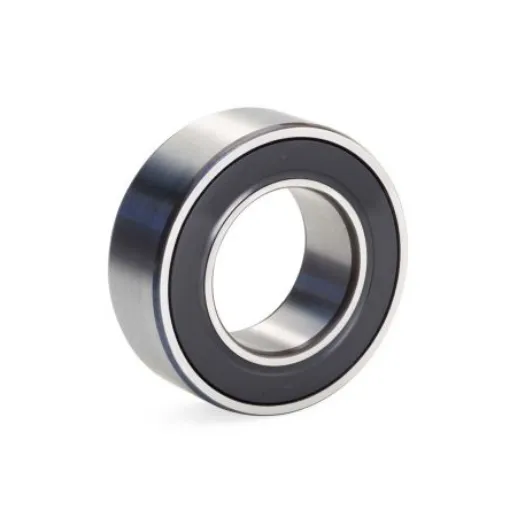

SKF 3204 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 20mm I.D, 47mm O.D

Inside Diameter = 20mm
Outside Diameter = 47mm
Race Width = 20.6mm
Ball Bearing Type = Double Row Angular Contact Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 12.9kN
Dynamic Load Rating = 20.4kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 3204

SKF Plain Angular Contact Ball Bearing, 20 mm ID - 3204-A-2RS1TN9/MT33This angular contact bearing from SKF is designed for precise shaft guidance thats low in friction and vibration. Its suitable to use in applications with high rotational speeds and can handle both radial and axial loads. The units optimised geometry means it can operate quietly and at a low temperature. And as its built-in seals are supplied pre-greased, they dont need maintenance or relubrication. The high load-carrying capacity isnt compromised by the bearings compact size. This robust component offers a long service life.• Parallel cage ball bearing type • Made from steel • Cage material of fibreglass reinforced nylon 66 • Dynamic load rating of 20 kN • Static load rating of 12 kN • Sealed end type • Inner diameter of 20 mm • Outer diameter of 47 mm • Two rows • Plain race type • Race width of 20.6 mmApplication Information• Chemicals and hydrocarbon processing • Automotive industries • AgricultureWhat are integral seals on a bearing? Bearings that are integrally sealed are already lubricated and designed without grease cavities or shaft seals. These can take up more space and impose a mechanical burden on the shaft. This durable seal keeps the bearing safe from the risk of contamination as a result of handling or a shared lubricant.
