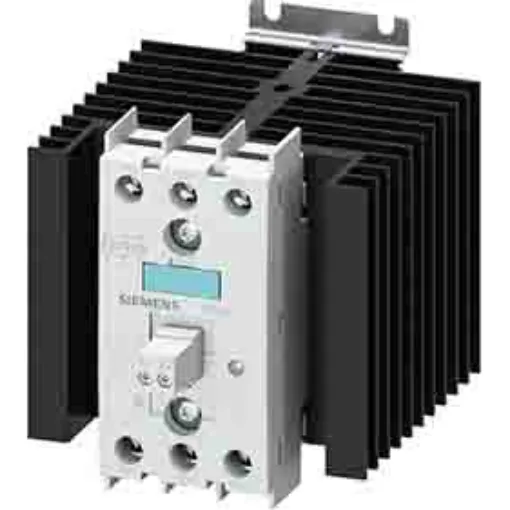

Siemens 3RF2 Series Solid State Relay, 30 A Load, DIN Rail Mount, 660 V Load - 3RF2430-1AC55
Reliable Siemens solid state relay for 30A loads, ideal for noise-sensitive areas.
Manufacturer part number: 3RF2430-1AC55
GTIN: 4011209647176
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Load Current = 30 A
Mounting Type = DIN Rail
Maximum Load Voltage = 660 V
Minimum Load Voltage = 40 V
Switching Type = Zero Point Switching
Range = SIRIUS 3RF
Contact Configuration = 3P-NO
Output Device = Thyristor
Series = 3RF2
The Siemens SIRIUS 3RF2 series is a solid-state contactor three-phase controlled for switching resistive/inductive loads. It has operating temperature of 40 °C and blocking voltage of 1200 V. The type of electrical main current circuit and for auxiliary and control current circuit is through spring loaded terminal. It is non-wearing and silent and are ideal for noise-sensitive areas. It is also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail.Operating frequency is 50 to 60 Hz Protection class IP is IP20
