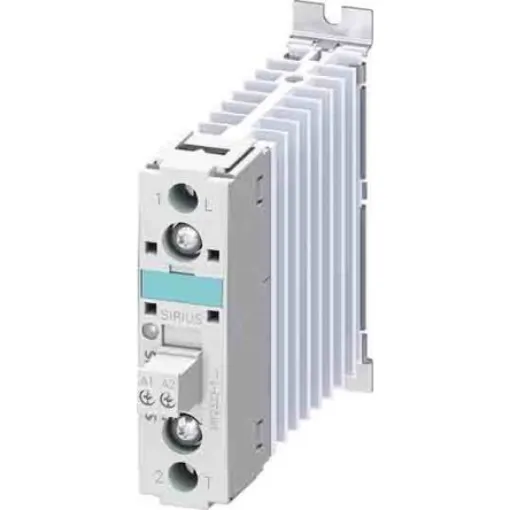

Siemens 3RF2 Series Solid State Relay, 20 A Load, DIN Rail Mount, 230 V Load - 3RF2320-1DA02
Reliable Siemens solid state relay for efficient load switching up to 20A.
Manufacturer part number: 3RF2320-1DA02
GTIN: 4011209572522
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Load Current = 20 A
Mounting Type = DIN Rail
Maximum Load Voltage = 230 V
Minimum Load Voltage = 24 V
Switching Type = Short-circuit resistant with B-automatic device
Range = SIRIUS 3RF
Contact Configuration = SPST
Output Device = Thyristor
Series = 3RF2
The Siemens SIRIUS 3RF2 series is a solid-state contactor single phase for switching resistive/inductive loads. It has operating temperature of 40 °C. The type of electrical main current circuit and for auxiliary and control current circuit is through screw type terminal. It is non-wearing and silent and are ideal for noise-sensitive areas. It is also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail.Operating frequency is 50 to 60 Hz Protection class IP is IP20
