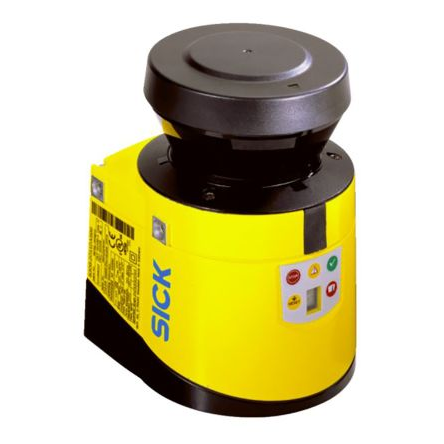

SICK S300 Advanced Series Laser Scanner Scanner, 30m Max Range - S30B-3011CA / 1056428
The SICK S300 Advanced Laser Scanner ensures safety with a 30m range and customizable protection fields.
Manufacturer part number: S30B-3011CA / 1056428
GTIN: 4047084237096
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Component Type = Scanner
Minimum Scanning Distance = 3m
Safety Type = 3
SIL IEC 61508 = 2
PL EN ISO 13849-1 = d
Maximum Response Time = 80 ms
Terminal Type = 8-Pin M12 Male Connector
Length = 102mm
S300 Advanced Safety Laser Scanner. Four protection and four warning fields are freely programmable using the software supplied with the device. This allows each laser scanner to be set up according to the unique requirements of each installation. Features ; Benefits. Simultaneous monitoring of 2 protection fields possible Plug and play for device exchange Short response time (80ms minimum) 270° Scanning window 3 m radius for the safety field 8 m warning field (at 15% refelctivity) 2 OSSD safety outputs, 1 warning field output, 1 diagnostic output 2 Control inputs, 1 reset input, 1 EDM input IP65. Applications:. Typical applications include: Robot Cells; Tube bending machines; Automotive Industry; Collision avoidance; mobile applications (AGV); Area protection; Internal space protection (large presses) and the replacement of safety mats.
