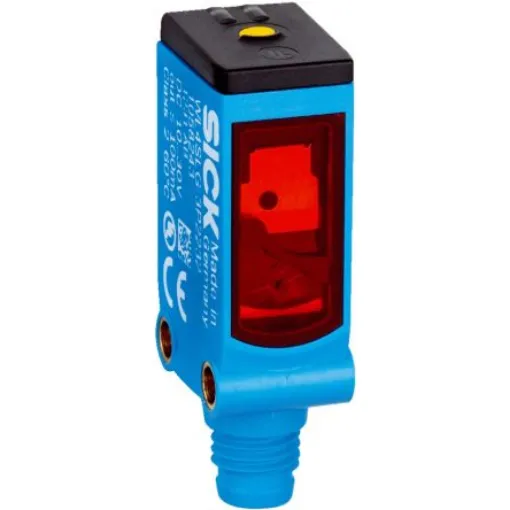

SICK Retroreflective Photoelectric Sensor, Block Sensor, 12 m Detection Range - WL4SL-3F2232

Sensor Style = Block
Detection Type = Retroreflective
Detection Range = 12 m
Output Type = PNP
Electrical Connection = M8 Connector
Maximum DC Voltage = 30V
Terminal Type = 4 Pin Connector
IP Rating = IP66, IP67
Response Time = 500 µs
Housing Material = Plastic

OverviewMaximum performance for handling demanding detection tasks involving tiny objects. With its precise laser light spot, the W4SL-3 miniature product family sets new standards by providing high optical light immunity from undesired background reflections and immunity to ambient light - even from modern energy-saving lamps. The combination of SICKs proprietary laser and ASIC technologies reduces incorrect switching to minimize machine downtime, reducing the variety of devices and saving on storage costs. The photoelectric sensors also provide an IO-Link interface for initial system performance diagnostics. Furthermore, IO-Link permits the integration of additional functions such as meters directly into the sensor. There is no need for complex control programming.At a glancePrecise laser light spot, laser class 1 Teach-in pushbutton can be switched between detection of transparent and non-transparent objects Sensing ranges between 25 mm and 60 m Latest SICK proprietary ASIC and laser technologies with second emitter LED to provide outstanding background suppression and ambient light immunity Choice of adjustment via teach-in button, potentiometer, cable, or IO-LinkYour BenefitPrecise laser light spot for highly accurate switching behavior High optical ambient light immunity reduces incorrect switching and thus machine downtime, even when modern energy-saving lamps are used The highest degree of machine design flexibility BGS (background suppression) eliminates the effect of undesired background reflections. In addition, autocollimation allows detection through small drilled holes One device for detecting both transparent objects and the smallest non-transparent objects, thus reducing the variety of sensors and saving on storage costs IO-Link facilitates initial system performance diagnostics and uses additional sensor functions (optional) to reduce complex control programmingApplicationsOverhang control – sensor avoids overhanging panels Precise object positioning – Monitoring the exact position of a part in order to prepare a quality check Precise edge detection of glass panel Monitoring additional features of a part such as boreholes Check whether a part is located in the gripper of the robot Application are, e.g. at the packaging, automotive and part supplier, electronic and solar industry, machine building and the industries of commercial goods
