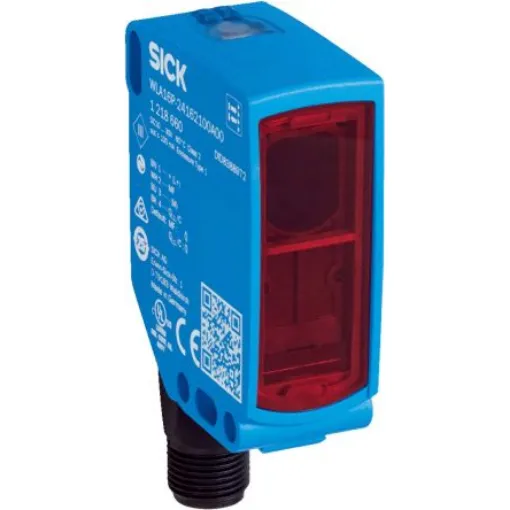

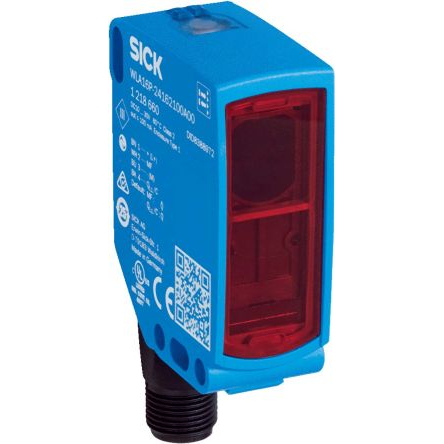

SICK Polarised Retro Reflection Photoelectric Sensor, Block Sensor, 10 m Detection Range - WLA16P-24161100A00Z

Sensor Style = Block
Detection Type = Polarised Retro Reflection
Detection Range = 10 m
Output Type = NPN, PNP, PUSH/PULL
Electrical Connection = M12 Connector
Maximum DC Voltage = 30V
Terminal Type = 4 Pin Connector
Light Source = LED
IP Rating = IP66, IP67, IP69
Response Time = 500 µs
Housing Material = Plastic°C

OverviewThe W16 is equipped with new technologies such as TwinEye, LineSpot, ClearSens and OptoFilter for reliable object detection. It can be quickly and conveniently adjusted via the BluePilot operating and display concept. Since every W16 is designed as a Smart Sensor, it can be configured to fit the application via IO-Link and offers additional diagnostic functions and Smart Tasks. It is therefore a trailblazer on the path to Industry 4.0. The highly-visible PinPoint LED and the infrared LED are available as the light source. The durable laser inscription ensures device identification in the long run. Thanks to the very rugged VISTAL® housing and the predictive maintenance, the W16 offers very high reliability and prevents unplanned machine downtimes.At a glanceTechnologies: ClearSens, LineSpot, TwinEye with OptoFilter BluePilot: Optical alignment aid, adjustment of the sensing range via Teach-Turn adjustment with optical sensing range indicator or via IO-Link PinPoint LED: Light-intensive red sender LED Smart Sensor: Enhanced Sensing, IO-Link, Diagnostics, Smart TasksYour BenefitUsability and uniform operation thanks to optical quality display on the housing or conveniently via IO-Link Simplification when aligning the light beam to the reflector, the receiver or to an object thanks to the highly-visible light spot of the PinPoint LED combined with the optical LED display Very high reliability thanks to new detection technologies as well as high optical ruggedness The Smart Sensor makes machine processes quicker, more efficient and transparent, enables predictive maintenance and is thereby a trailblazer for Industry 4.0 applicationsApplicationsConveyor speed measurement and presence monitoring on a rotary indexing table Counting of products at the infeed Level measurement on a carton magazine Presence check of carton prior to setting it upright Level measurement on a carton magazine Presence check of the carton before filling Counting of products at the infeed Detection of assigned tool locations Detection of empty positions Detection of protruding objects Occupied table monitoring on the load-carrying unit
