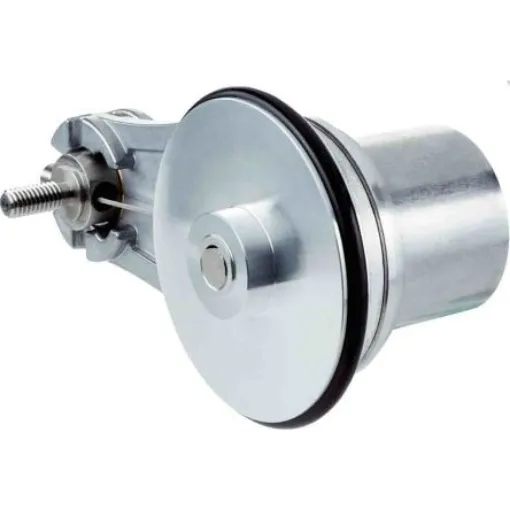

SICK Linear Measuring Linear Measuring Encoder, 200 ppr, TTL Signal, Measuring Wheel Type - DBV50E-22AKB0200
Achieve precise linear measurements with the SICK encoder featuring 200 PPR and TTL output.
Manufacturer part number: DBV50E-22AKB0200
GTIN: 4047084400469
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Encoder Technology = Linear Measuring
Pulses Per Revolution = 200
Maximum Revolutions = 3000rpm
Output Signal Type = TTL
Shaft Type = Measuring Wheel
Supply Voltage = 4.5 to 5.5 V dc
Resolution = 1 mm
IP Rating = IP65
Overall Height = 60mm
Overall Width = 110mm
Overall Depth = 54.7mm
This SICK Measuring Wheel encoder combines a robust incremental encoder, NBR70 Measuring Wheel and Spring assembly in an easy to mount and adjust solution for linear measurement tasks. To simplify mounting further an L-Bracket is available 201-3666. The encoder has a linear resolution of 1mm with a TTL output and 4.5 - 5.5V dc power supply. The 1.5m long cable used for the electrical connection can be routed in different directions to suit the application. The unit is sealed to IP65 enabling use in most industrial environments.Measuring step deviation is ± 18°/pulses per revolution Its Supply voltage is 4.5 V to 5.5 V Operating power consumption (no load) is 50 mA
