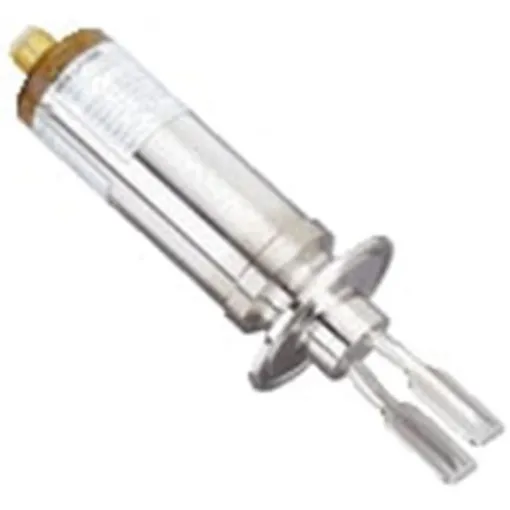

Sick LFV200 Series, Vibrating Level Switch 1.5” Triclamp Thread Mounting PNP Output - LFV200-XXHCLIPM
The LFV200 Vibrating Level Switch ensures precise liquid level detection for optimal system performance.
Manufacturer part number: LFV200-XXHCLIPM
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Vibrating Level Switch
Mounting Type = 1.5" Triclamp
Switch Output = PNP
Body Material = PEI, Stainless Steel 1.4404
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +70°C
Maximum DC Voltage = 30V
Maximum Current = 250 mA
Maximum Pressure = 64bar
Series = LFV200
Interface = IO-Link
The LFV200 product family of universal vibrating level switches precisely detects predefined liquid levels in systems to the millimeter. The switches can emit a signal to prevent overfilling, a switching signal for refilling, or a dry-run signal for pump protection. The LFV200 works independently of the liquid and is wear-free and maintenance-free. The rugged stainless steel tuning fork is piezo-electrically energized and vibrates at its resonance frequency.Housing made of 316L stainless steel Two electrical output versions and IO-Link available Commissioning without filling Process temperature up to 150 °C Immune to deposit formation Very high repeatability Aseptic versions with polished surface, CIP and SIP resistant Tube extension up to 1,200 mm Easy installation and commissioning, no pre-calibration necessary Easy operation and integration Maintenance-free system Sensors can be tested while installed Flexible, reliable system suitable for many types of applications
