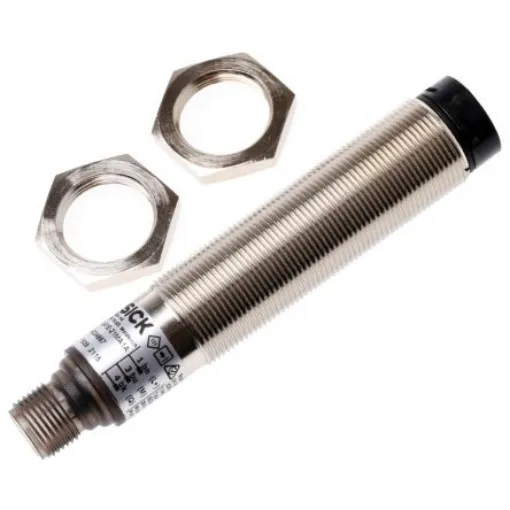

SICK L4000 Series Light Beam Receiver, 1 Beam(s), 10m Max Range - L41E-21MA1A / 6034867
The SICK L4000 Light Beam Receiver ensures high safety with a 10m scanning range and quick response time.
Manufacturer part number: L41E-21MA1A / 6034867
GTIN: 5059040288126
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Series = L4000
Component Type = Receiver
Maximum Scanning Distance = 10m
Safety Type = 4
SIL IEC 61508 = 3
PL EN ISO 13849-1 = e
Number of Beams = 1
Maximum Response Time = 200 µs
Terminal Type = M12 Connector
Dimensions = M18 x 97.7 mm
Product Length = 97.7mm
Diameter = M18
Features = EDM, Muting
L41 Single Beam Safety System. The L41 is a type 4 (IEC61496) cascadable single-beam photoelectric safety switch comprising of a sender and a receiver. The correct function of the L41 can be checked with the aid of the test input on the sender. Integrated testing means sensor signals are now directly available for a variety of control related logics and functions e.g. AND/OR, Muting or Bypass Colour LEDs provide in-situ information on operational status Numerous areas of operational use, IP67 rated for outdoor applications and sub-zero operating capability Nickel plated brass housing Inputs/outputs compliant with EN 61131 Direct connection to safe controllers and thus evaluation without detours e.g. UE410 Flexi Classic. Performance levels up to PL e in accordance with EN ISO 13849-1 and SILCL3 (IEC62061), SIL3 (IEC61508) can be achieved Applications include: Robots, processing machines, palletiser systems, machining centres and high bay warehouses
