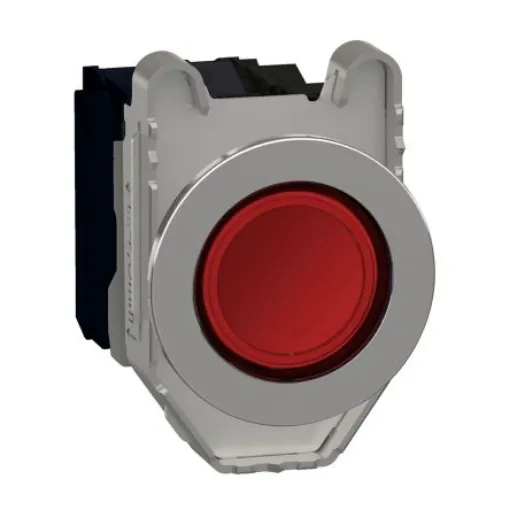

Schneider Electric XB4 Series Illuminated Push Button, Panel Mount, 30mm Cutout, SPDT - XB4FW34G5

Illuminated = Yes
Series = XB4mm
Mounting Type = Panel Mount
Push Button Colour = Red
Contact Configuration = SPDT
Push Button Style = Round
Push Button Diameter = 36.5mm
Push Button Material = Metal
Better World Product = Yes
Manufacturer Part No. = XB4FW34G5

Operating temperature from -40°C –to 70°C High vibration resistance with shake-proof terminal screws Large set of accessories to customize your panels Various types of connection are available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board A wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching) Benefits High performance even in the most demanding environments Attractive design, reinforced with the flush mounting kit Flexibility and adaptability through modular design Simplicity and speed of installation Wide offer providing a solution for all your applications Applications General purpose offer covering all segments and applications Industry Machines and control panels in packaging, material handling, material working, pumping, etc. Ideal in extreme environments: food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure Energy distribution panels, public works, restaurants, commercial buildings, airports, etc.Flush mounted red Ø30.5 illum pushbutton with LED 120V AC 1NO 1NC screw
