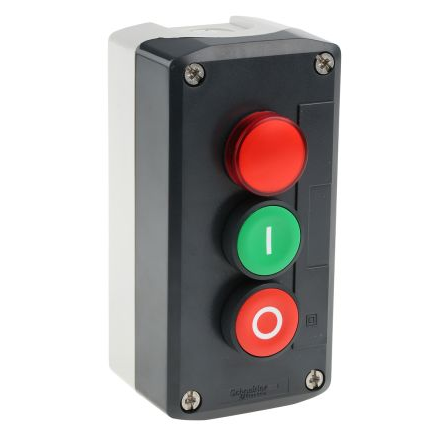

Schneider Electric Spring Return Enclosed Push Button, Polycarbonate, I, O, IP66, IP67, IP69K - XALD363G

Series = Harmony XALD
Push Button Marking = I, O
Enclosure Material = Polycarbonate
IP Rating = IP66, IP67, IP69K
Cutout Diameter = 22mm
Push Button Actuation = Spring Return
Length = 104mm
Width = 68mm
Better World Verification = Green Premiummm
Maximum DC Voltage = 600V

Stock number 0299398 is not a flush push button it is a Projected Push Button. Schneider Electric Enclosed Push Button - Complete Control Station. Forming part of Schneider Electrics Harmony XALD Series, this complete control station is the ideal solution for installations within the chemical, marine, energy and automotive industry. Although they are found within a multitude of applications, a simple example is within a car wash. The majority of them will be found within an industrial environment because of how the control station provides a high level of protection for the push button inside. Features ; Benefits. Compatible with other items in the Harmony range such as pushbuttons, mushroom head operators, legend plates and LEDs Comprised of a polycarbonate material For XB5 Ø 22 mm control and signalling units Cable entry - 1 knock-out for cable entry, clamping capacity: ;= 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: ;= 12 mm Stop button fitted with 1 N/C contact block, start button fitted with 1 N/O contact IP65 rated Double insulated. What is the Harmony Series?. The Harmony Series is a range of push-button enclosures and pendant control stations that are used for direct control or auxiliary of processes and industrial machinery. This series is predominantly ideal for industrial, infrastructure and building applications and installations due to its wide choice of composition cut-outs. The Harmony Series range is all compatible to work with each other, interchangeably.
