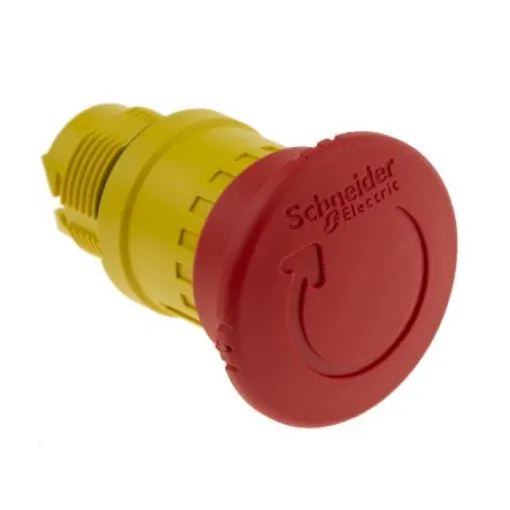

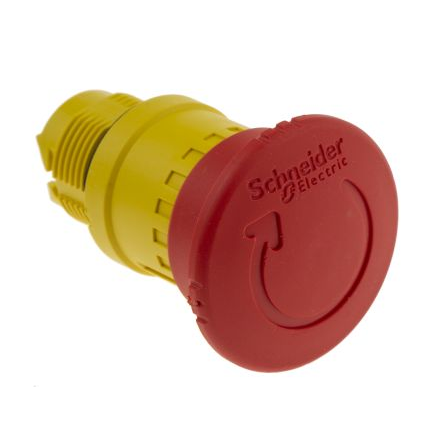

Schneider Electric Harmony XB5 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC, IP66, - XB5AS8442
Ensure safety with the Harmony XB5 Emergency Stop Push Button, featuring robust IP66 protection and reliable performance.
Manufacturer part number: XB5AS8442
GTIN: 3389110575453
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Mounting Type = Panel Mount
Cutout Diameter = 22mm
Contact Configuration = 1NC
Voltage Rating = 600V ac
Illuminated = No
IP Rating = IP66, IP67, IP69(IP69K)
Colour = Red
Push Button Shape = Round
Supply Current = 1.2A
Depth = 77.5mm
Width = 40mm
Bezel Material = Plasticmm
XB5AS8442 Harmony XB5 Schneider Electric Emergency Stop Push Button. Emergency stop, emergency switching off push button. Harmony XB5. Bezel –Plastic, dark grey. Plastic fixing collar. Mounting diameter 22 mm. Round shape, standard head type, red mushroom 40 mm diameter (unmarked). Release reset, Turn to release, push-pull. Operator trigger action /mechanical latching. 1 NC Contact, slow break. Screw clamp terminal connection. 300000 Durability cycles. Silver alloy (Ag/Ni) contacts. Vibration and shock resistant. Screw Head Shape. Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat 4 mm screwdriver, Slotted compatible with flat 5.5 mm screwdriver. Protection. IP 66 to IEC 60529, IP 67, IP 69, IP 69K, NEMA 13, NEMA 4X, IK 03 to IEC 50102. Standards. EN/IEC 60947-1, EN/IEC 60947-5-5, JIS C8201-5-1, EN/IEC 60947-5-4, IEC 60364-5-53, EN/IEC 60204-1, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/ISO 13850, JIS C8201-1. Certification. CSA, LROS (Lloyds register of shipping,) DNV, RINA, BV, UL listed, G.
