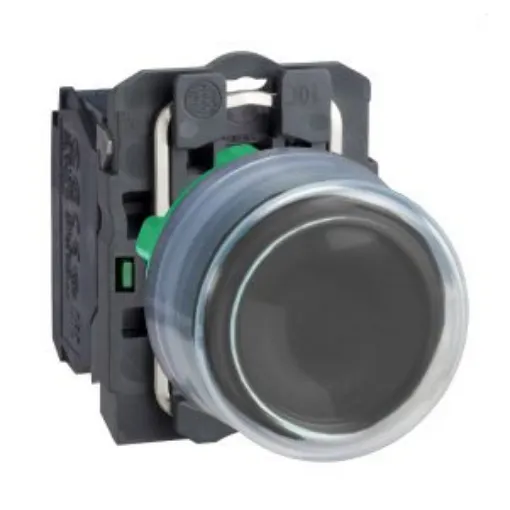

Schneider Electric Harmony XB5 Series Push Button, 22mm Cutout, SPST - XB5AP21
Durable 22mm push button with SPST configuration, ideal for extreme environments.
Manufacturer part number: XB5AP21
GTIN: 3389110903676
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Panel Cut Out Diameter = 22mm
Contact Configuration = SPST
Push Button Style = Round
Better World Product = Yes
Manufacturer Part No. = XB5AP21
Schneider Electric / Harmony XB5 Series / Push Buttons. A selection of Harmony XB5 series of chromium plated metal control and signalling units designed for use in the most extreme environments. Supplied with several different profile colouring heads including red, orange and yellow which can be used to identify different functions to users. Features and benefits. Slow-break contact which can be operated from any position. Spring return button. Standard black flush style head type with a dark grey plastic bezel and plastic fixing collar. These are easily maintained and clean. 10,000,000 cycles of high-performance mechanical durability ensuring consistent reliability and longevity of use. Suitable for use in temperature ranges -40 to 70 ° C. 1 NO contact type with a screw clamp terminal connection. Protection ratings ; Safety features (See datasheet for further details) - IP 66 rated conforming to IEC 60529 for complete protection against the ingress of dust and other foreign particles. This means the Push Button has protection against high-pressure water jets from any direction. IP 69K ; IP 69 rated. This means the base unit has greater protection against steam-jet cleaning and has limited ingress protection from dust. Perfect for use in areas with heavy duty clean down procedures. NEMA 4X ; 13. Can be used indoors/outdoors with further protection against dust and dripping non-corrosive liquids. EN/IEC 60947-5-1, UL 508 Short circuit protection via a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1. 10 gn of Shock resistance that conforms to IEC 60068-2-27. Vibration resistance 5 gn conforming to IEC 60068-2-6. Applications -. Control stations/panels used in E-Stop scenarios Automotive industries, factories, automation lines Commercial units such as warehouses. Restaurants, commercial food units with detailed cleaning tasks that happen on a regular basis.
