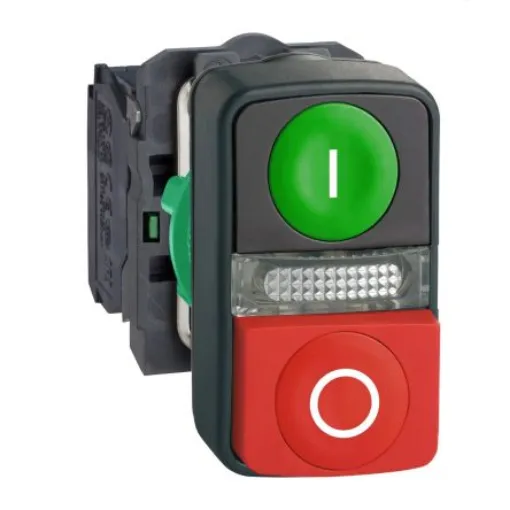

Schneider Electric Harmony XB5 Series Illuminated Push Button, Push-Push, Panel Mount, 22mm Cutout, SPDT, 24V, IP66, - XB5AW73731B5
Experience reliable control with the Harmony XB5 illuminated push button, designed for durability and ease of use.
Manufacturer part number:
XB5AW73731B5
GTIN:
3389119043540
Availability:
Out of stock
Only Ships to:
France, Monaco
For shipping outside these regions, please contact customer support.
Switch Operation = Push-Push
Illuminated = Yes
Series = Harmony XB5mm
Mounting Type = Panel Mount
Push Button Colour = Green, Red
Contact Configuration = SPDT
Voltage Rating = 24V
Push Button Style = Rectangular
IP Rating = IP66, IP69, IP69K
Push Button Material = Plastic
Contact Current Rating = 10A
Better World Verification = Green Premium
Case Colour = Black
XB5AW73731B5 Harmony XB5 Illuminated Double Headed Push Button 24 V ac/dc.Made from Dark Grey Plastic. Standard head type (rectangular signalling unit head). 22 mm Mounting diameter. Spring return operation. Profile – 1 x Flush, 1 x projecting push button, 1 x Central pilot light. Steady signal. Green - I, Red – O. 1 NO + 1 NC Contacts. Slow break operation. Silver alloy contacts. Protected LED, Integral LED. Height 50 mm. Width 30 mm. Depth 59 mm. Weight 0.066 kg. Life cycle 1000000 cycles. Green Premium product.Connection Terminals.Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1. Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1. Spring terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1. Spring terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1.Protection.Class II to IEC 61140. IP66 conforming to IEC 60529. IP69 conforming to IEC 60529. IP69K. NEMA 13. NEMA 4X. Shock resistance to IEC 60068-2-27. Vibration resistance to EC 60068-2-6
