Schneider Electric Harmony XB4 Series Push Button, Panel Mount, 22mm Cutout, 2 NO + 1NC - XB4BA711237
Compact and durable push button switch for reliable control in various applications.
Manufacturer part number: XB4BA711237
GTIN: 3389119603515
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Illuminated = No
Panel Cut Out Diameter = 22mm
Mounting Type = Panel Mount
Push Button Colour = Black, Red, White
Contact Configuration = 2 NO + 1NC
Push Button Style = Rectangular
Push Button Material = Metal
Better World Product = Yes
Manufacturer Part No. = XB4BA711237

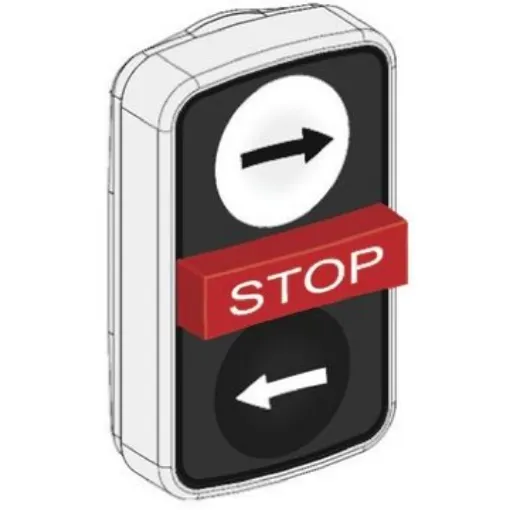

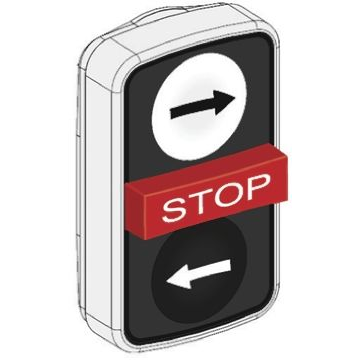

Schneider Electric / Harmony XB4 Series / Push Buttons. The Schneider Electric range of Push Button switch comes with complete control over your working environment. The Push Button can make a fine addition to your safety control panels, easily identifiable and operated by all users. Schneider boasts a successfully tested range of XB4 push buttons that offer you reliability in different scenarios. Features and benefits. Rectangular shaped signalling unit head, with 1 flush button (Green "i") and 1 projected push button (Red "O"). The buttons are spring return. Chromium plated metal with a Zamak fixing collar, easily maintained and cleaned. Small, compact 22 mm mounting diameter, perfect for panel mounting, especially where space may be restricted. 1,000,000 cycles of high-performance mechanical durability ensuring consistent reliability. Suitable for use in temperature ranges -40 to 70 ° C 1 NO + NC contact type with a slow break contact Protection ratings ; Safety features (See datasheet for further details) - IP 67 rated, providing protection to water immersion to a certain level. IP 69 ; IP 69 K rated, further providing resistance to high-pressure water streams ; steam cleaning. Rated protection against high-pressure washers sits at 7,000,000 Pa at 55°C, within a distance of 0.1m. NEMA 13 ; 4 X rated degree of protection, providing further protection from oils, greases etc. EN/IEC 60947-5-1, UL 508 ; CSA C22.2 No 14. Short circuit protection via a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1. Vibration resistance 5 gn conforming to IEC 60068-2-6. Applications -. Control stations / panels used in E-Stop scenarios Automotive industries, factories, automation lines Commercial units such as warehouses
