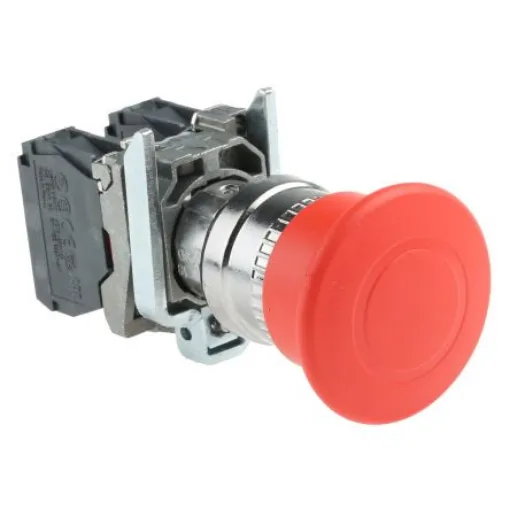

Schneider Electric Harmony XB4 Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, SPDT, IP66, - XB4BT845
Ensure safety with the Harmony XB4 Emergency Stop Push Button featuring a reliable pull release mechanism.
Manufacturer part number: XB4BT845
GTIN: 3389110891904
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Mounting Type = Panel Mount
Cutout Diameter = 22mm
Contact Configuration = SPDT
Push Button Actuation = Pull ReleaseV dc
Series = Harmony XB4
IP Rating = IP66, IP67, IP69(IP69K)
Colour = Red
Push Button Shape = Round
Supply Current = 14mA
Depth = 43mm
Width = 46.5mm
Bezel Material = Metalmm
XB4BT845 Harmony XB4 Schneider Electric Emergency Stop Push Button. Emergency stop, emergency switching off push button. Harmony XB4. Bezel – Chromium plated metal. Zamak fixing collar. Mounting diameter 22 mm. Round shape, red mushroom 40 mm diameter (unmarked). Release reset, Push-pull. Operator – Trigger action and mechanical latching. 1 NC + 1 NO Contact, slow break. Screw clamp terminal connection. 300000 Durability cycles. Silver alloy (Ag/Ni) contacts. Vibration and shock resistant. Weight 0.136 kg. Screw Head Shape. Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat 4 mm screwdriver, Slotted compatible with flat 5.5 mm screwdriver. Protection. IP 66 to IEC 60529, IP 67, IP 69, IP 69K, NEMA 13, NEMA 4X, IK 03 to IEC 50102. Standards. EN/IEC 60204-1, UL 508, EN/ISO 13850, CSA C22.2 No 14, EN/IEC 60947-5-5, IEC 60364-5-53, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-1. Certification. CSA, LROS (Lloyds register of shipping,) DNV, RINA, BV, UL listed, GL.
