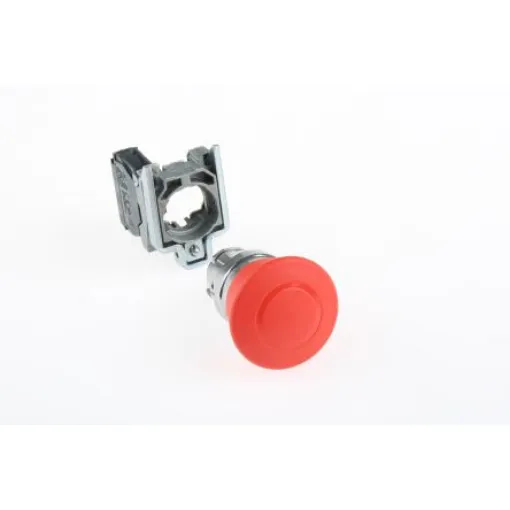

Schneider Electric Harmony XB4 Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC - XB4BT842
Ensure safety with the Harmony XB4 Emergency Stop Push Button, designed for reliable emergency shutdown.
Manufacturer part number: XB4BT842
GTIN: 3606480623714
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
XB4BT842 Harmony XB4 Emergency Stop Push Button. Emergency stop / emergency switching off push button. XB4. Made from Chromium plated metal. Zamak fixing collar. 22 mm Diameter. Round mushroom (40 mm) shaped head, red (standard). Operator trigger action / mechanical latching. Push-pull reset. 1 NC. Slow break. Screw clamp terminals. Height 47 mm. Width 40 mm. Depth 82 mm. Net weight 0.125 Kg. Lifecycle 3000000 cycles. Contact material silver alloy (Ag/Ni). Protection. IP66 conforming to IEC 60529, IP67, IP69, IP69K, NEMA 13, NEMA 4X, IK06 conforming to IEC 50102. Electrical shock Class I conforming to IEC 60536. Standards. EN/IEC 60947-5-1, EN/IEC 60204-1, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, IEC 60364-5-53, EN/ISO 13850, EN/IEC 60947-1, EN/IEC 60947-5-5, CSA C22.2 No 14, JIS C8201-1. Certification. DNV, GL, LROS (Lloyds register of shipping), RINA, CSA, UL listed, BV.
